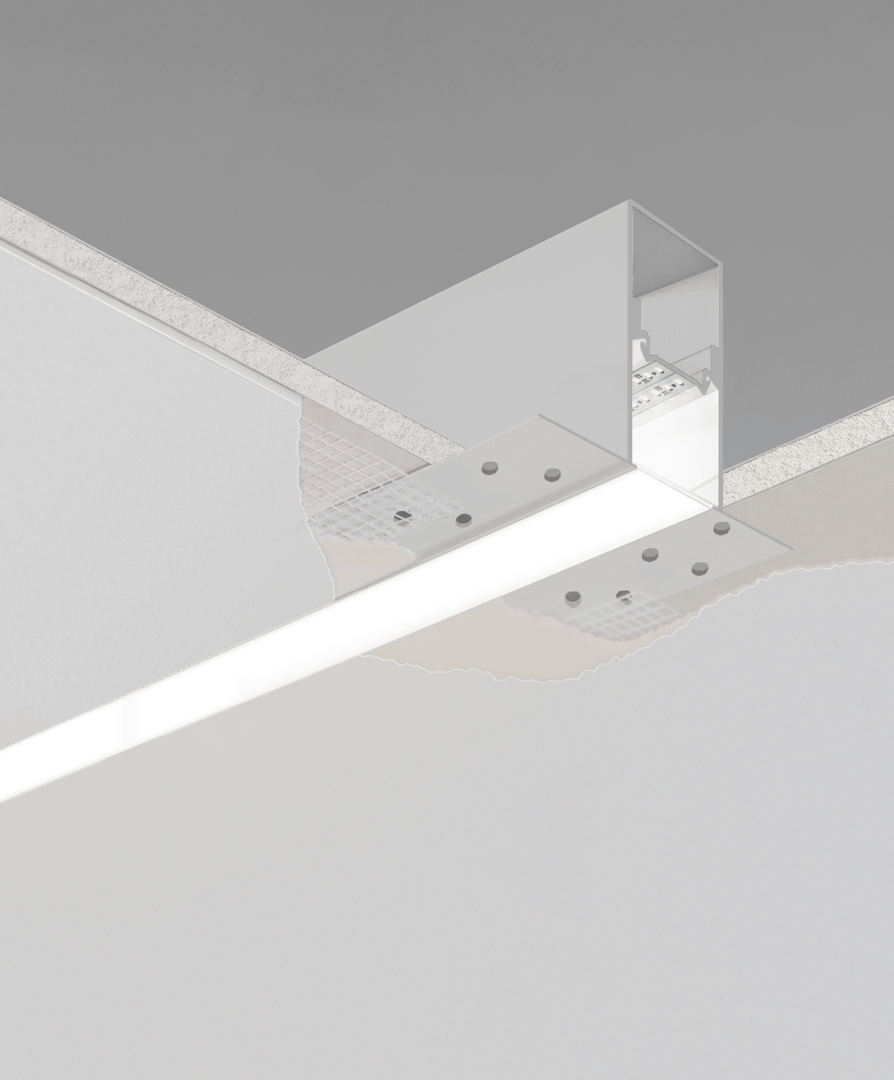

2.5-Inch Linear Recessed LED Light
by Alcon Lighting
Model 12100-25-R
$499.95
Built to order
Downloads
- Specification Sheet
- Drywall Installation Instructions
- Screw Slot Installation Instructions
- T-Bar Installation Instructions
- Spackle Flange (Trimless) Installation Instructions
- 90° Installation Instructions
- Lens Installation/Removal Instructions
- Driver Maintenance Instructions
- Emergency LED Driver Specifications
- Vive by Lutron™ - Specification Sheet
- Vive by Lutron™ - Brochure
- IES Files
- Non-Flanged Recessed Installation Instructions
Loading...
Details
Description

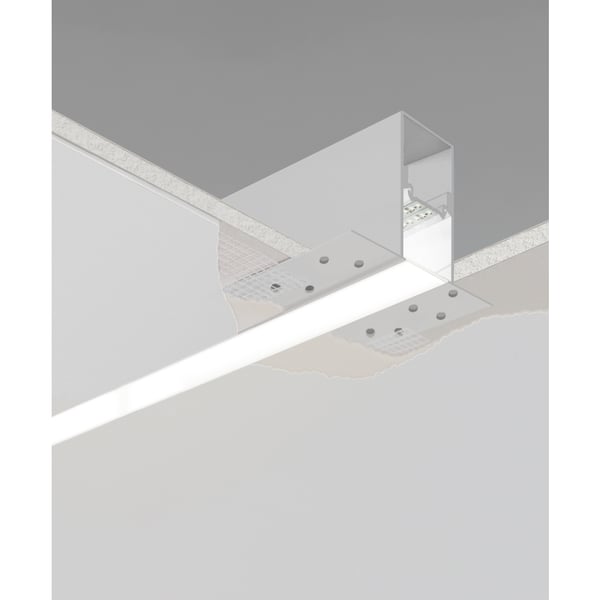

Alcon Lighting’s 2.5-inch recessed linear LED light delivers continuous clean lines and clear light to commercial, hospitality and residential interiors. The modern, slim profile linear recessed light offers direct downlighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants and other commercial spaces. The linear fixture is available 2', 3', 4’, 6' and 8’ lengths, or can be joined together in seamless runs of any length.
Manufacturer
Alcon Lighting
Model
12100-25-R
Lead Time
Ships-in: 4-6 Weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, cULus, DLC, Damp Location, Buy American Act (BAA), Assembled in USA (ARRA)
Features
Continuous Run, Ceiling to wall, Tunable White
Dimming
0-10V is standard. Other dimming drivers are available for an additional charge.
Wattage
25 to 49 Watts, 50 to 99 Watts
Voltage
120-277V
Finish
White, Black, Silver, Custom RAL (Extended Lead Time May Apply)
CCT
2700K, 3000K, 3500K, 4000K, 5000K
CRI
80 is standard. 90 is an available option.
Mounting
Recessed Trim Flange, Recessed Trimless (Drywall), Recessed T-Bar, Recessed Screw Slot
Light Direction
Direct Downlight, Wall Wash
Lumens per ft
640 lm/ft, 820 lm/ft, 1061 lm/ft, 1405 lm/ft, 1537 lm/ft
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
