Square
Recessed
Lighting
High-performance can lights with customizable features and advanced color tuning controls.
Square Recessed LED Lights Made for Modern Spaces
Alcon Lighting's square recessed lighting features a range of IC-rated and fire-rated housing options, designed for new construction and hassle-free retrofits with shallow profiles available for low plenums. Adjustable housing components allow for precise positioning during installation.
Our specification-grade lights offer:
- RGBW, tunable-white, and warm-to-dim color tuning
- Universal dimming compatibility and seamless integration with existing systems
- Fixed and adjustable optics for precise lighting application
Applications and Use
Wilton Court Apartments | Palo Alto, CA
Square recessed lights and cove lighting enhance a lobby interior in Palo Alto’s first affordable housing project in over a decade.
VIEW CASE STUDY

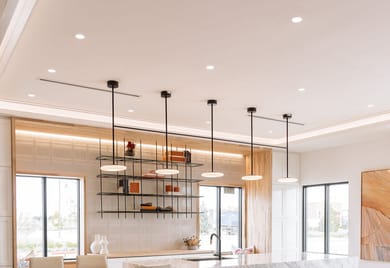

HBHQ Office & Podcast Studio | Fort Worth, TX

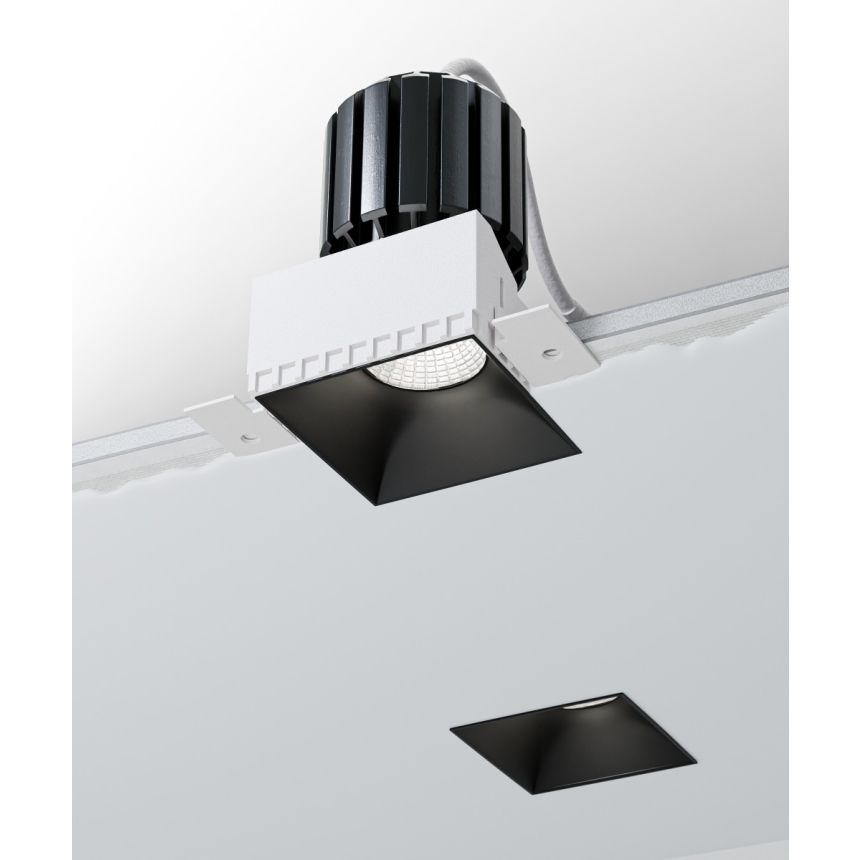

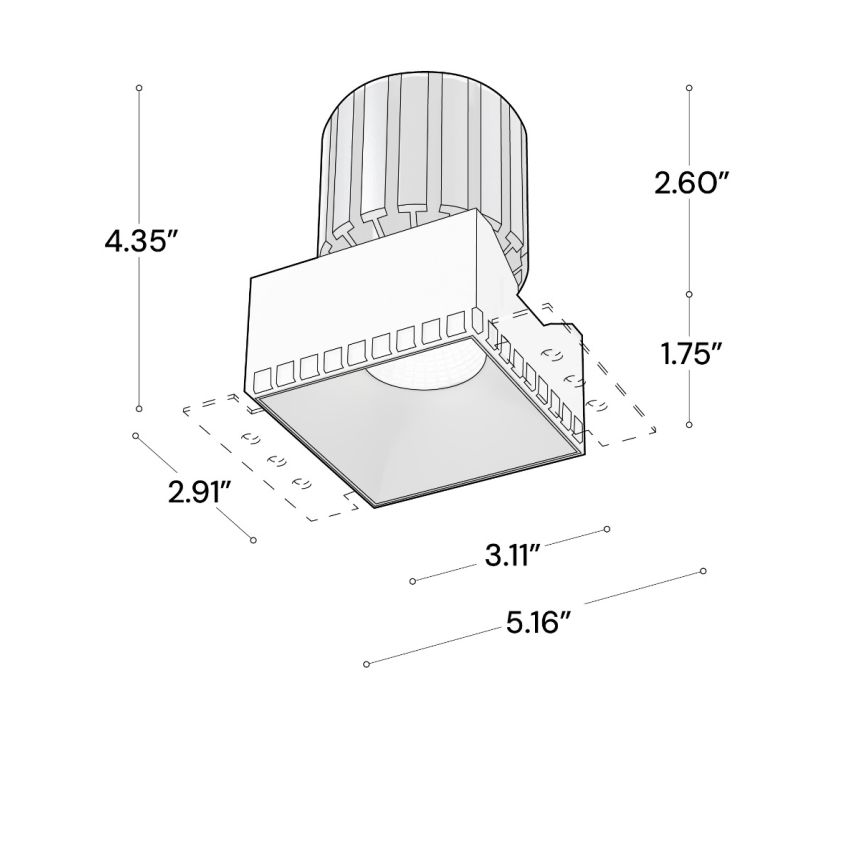

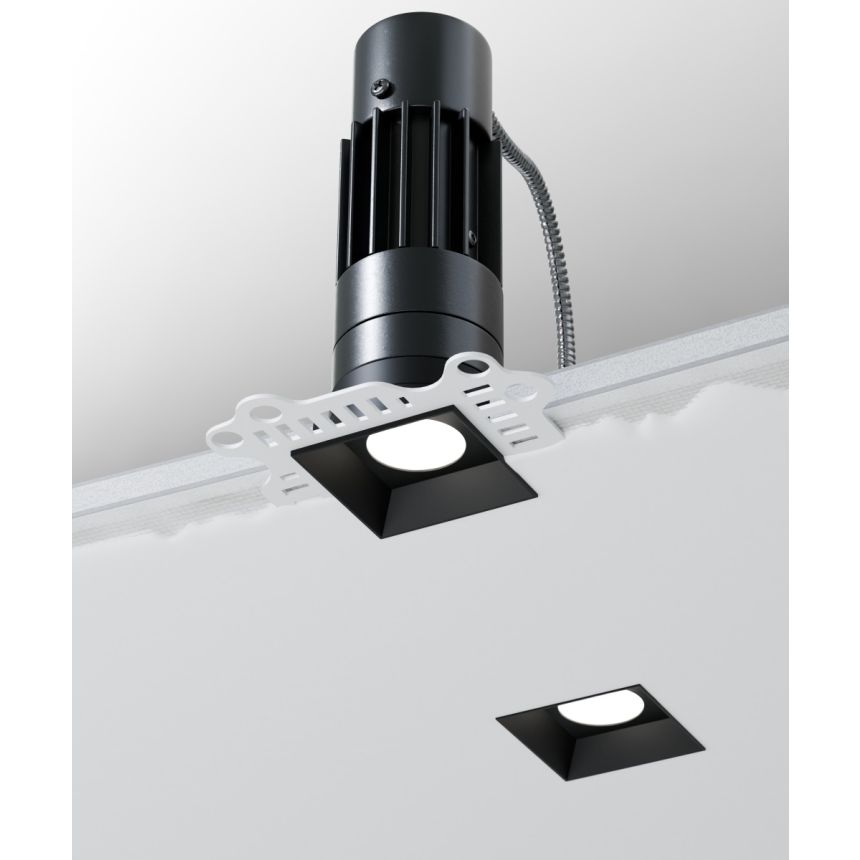

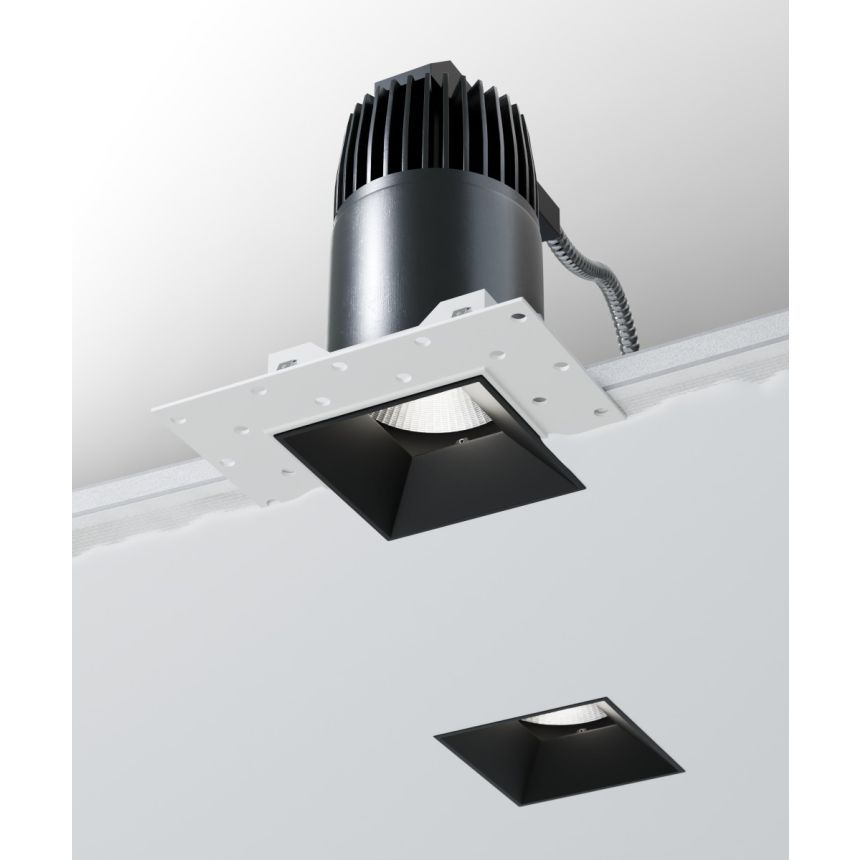

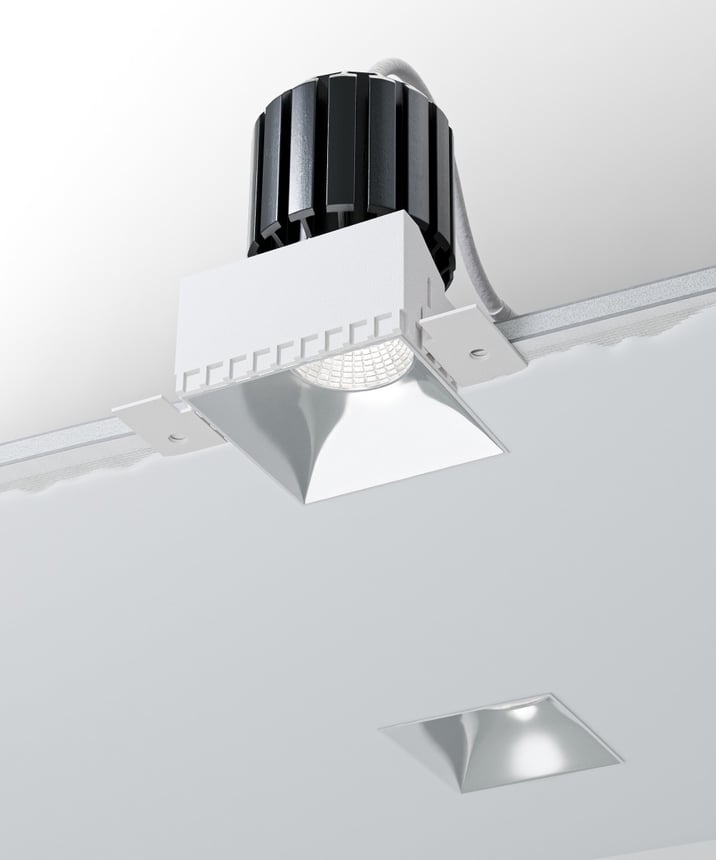

Trimless recessed lights provide ambient lighting over a kitchen and breakroom at a podcast recording office.
VIEW CASE STUDY
Kendall Bronco | Meridian, ID
Wet location-rated exterior can lights illuminate the entrances and carport of a car dealership showroom.
VIEW CASE STUDYSquare Recessed Lighting FAQ
-
Yes. Alcon Lighting specializes in specification-grade products built to suit commercial, hospitality and high-end residential projects. Fixtures generally offer options for:
- Trim style and finish, with custom RAL finishes available upon request
- Reflector finish
- Open or lensed
- Color temperature or color tuning controls
- Beam spread
- Dimming
- Housing

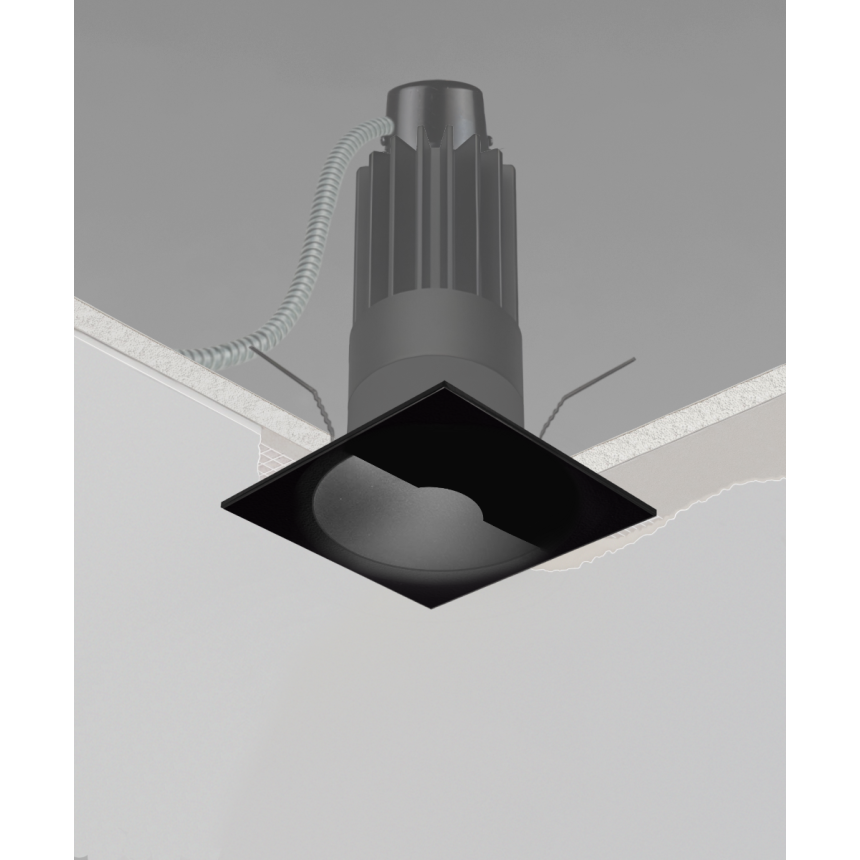

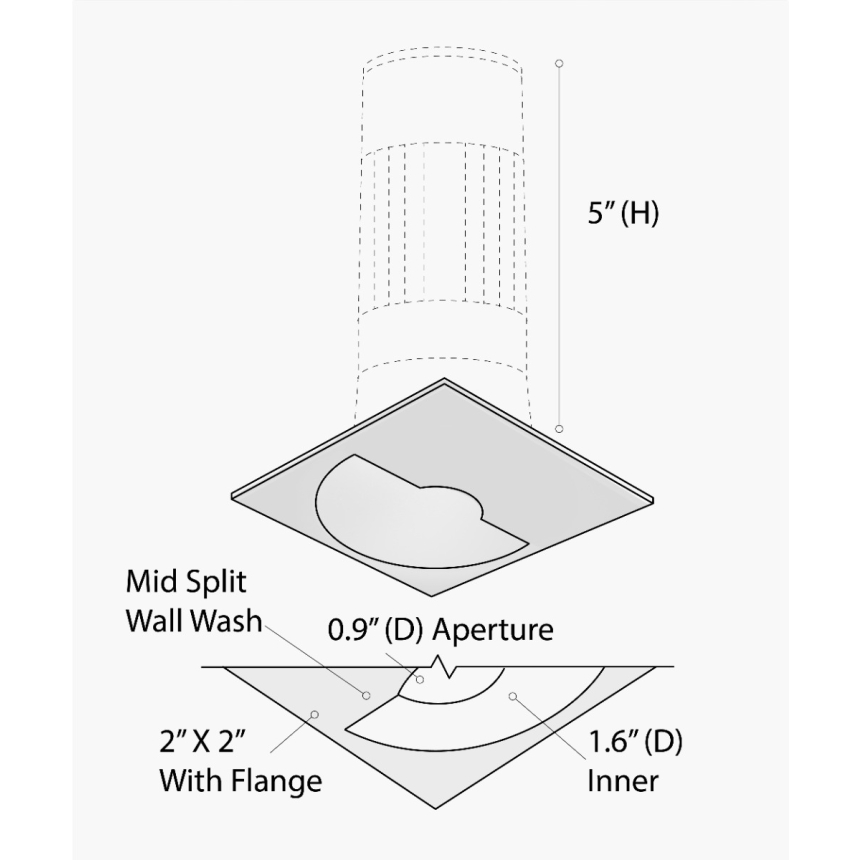

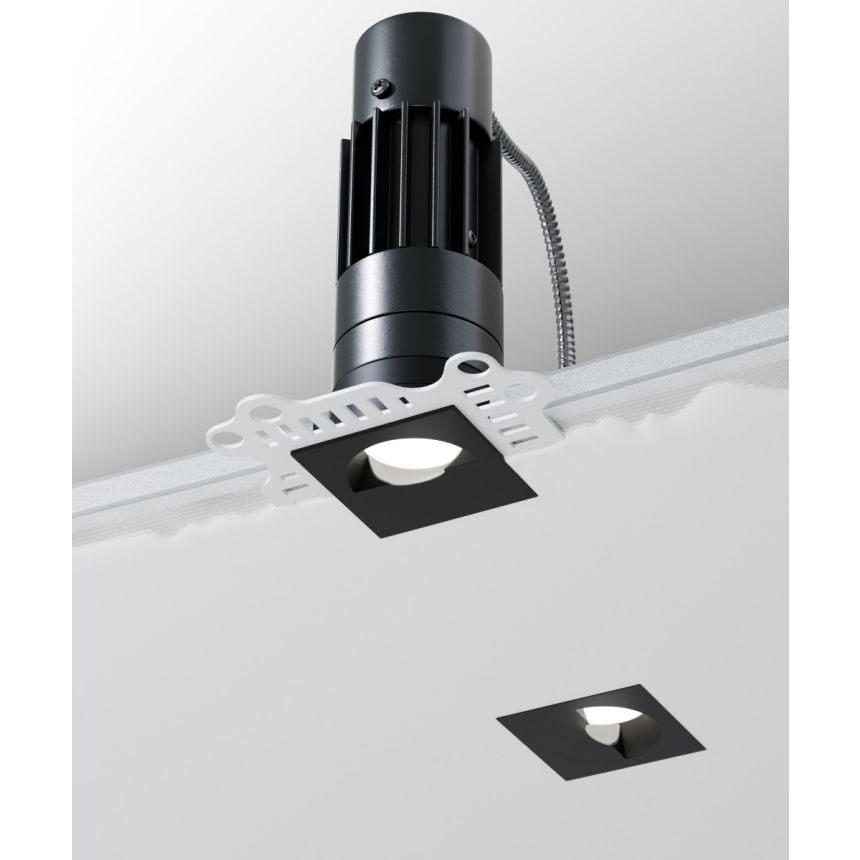

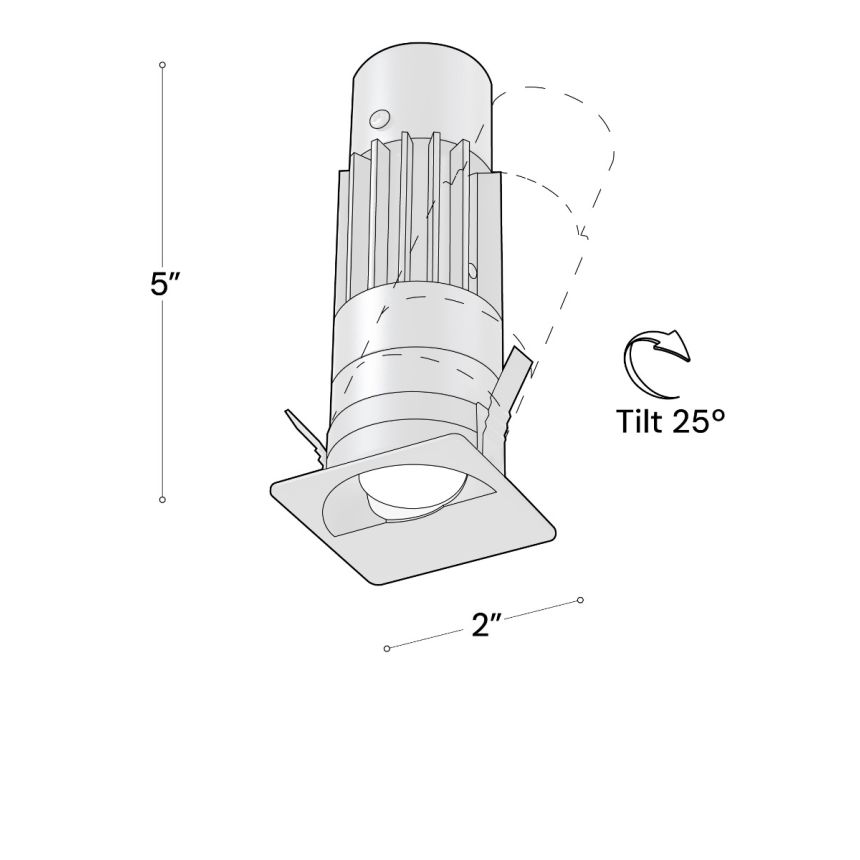

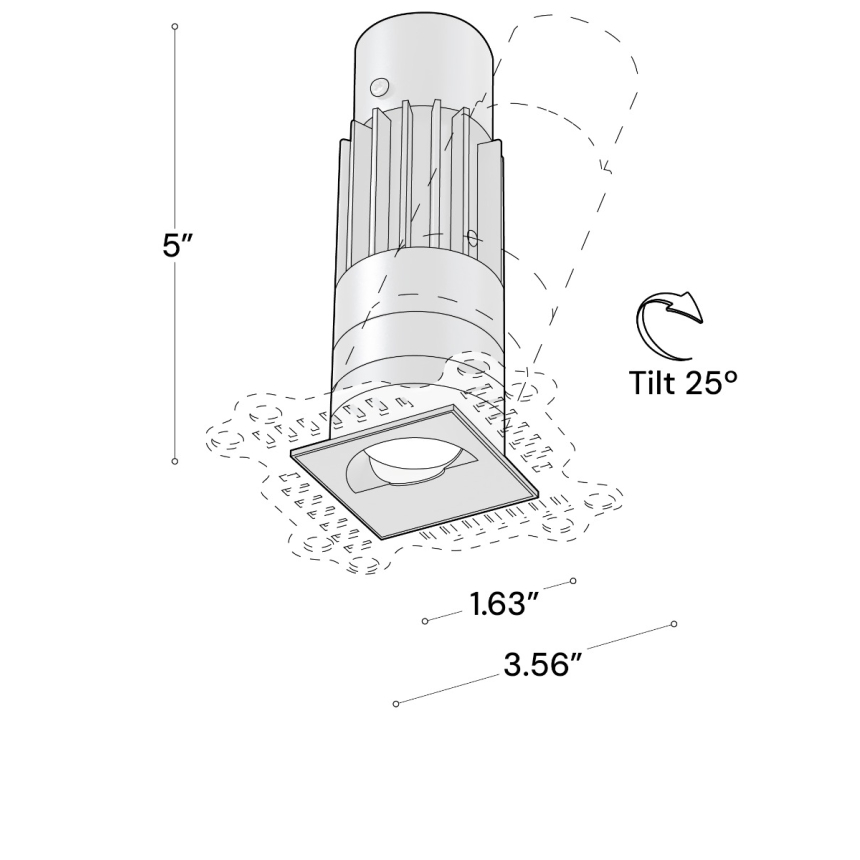

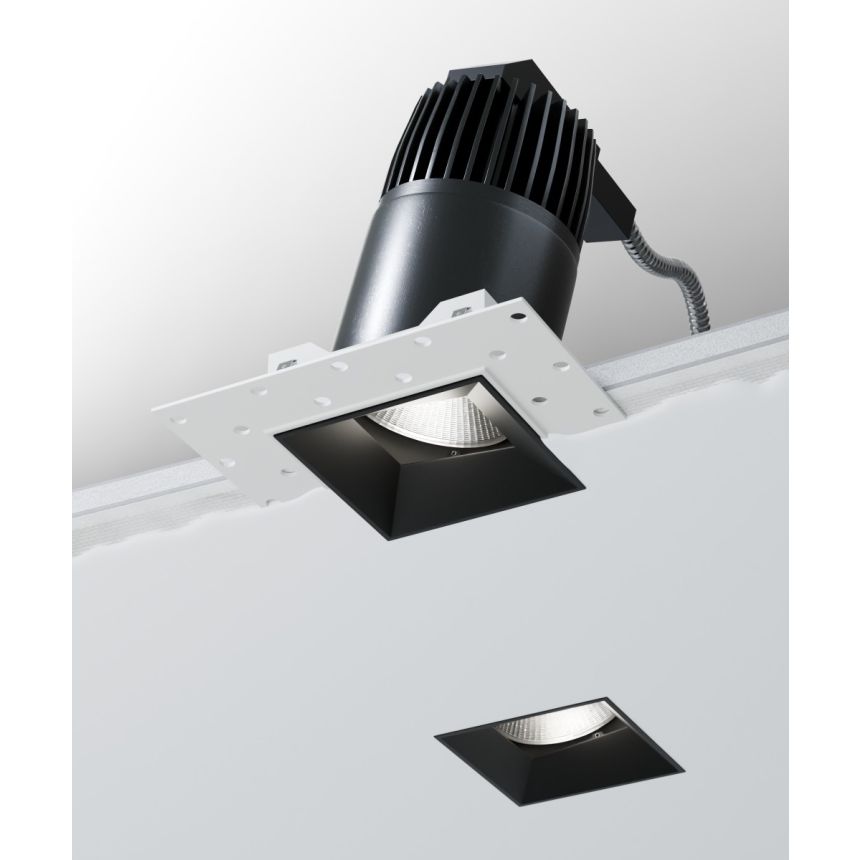

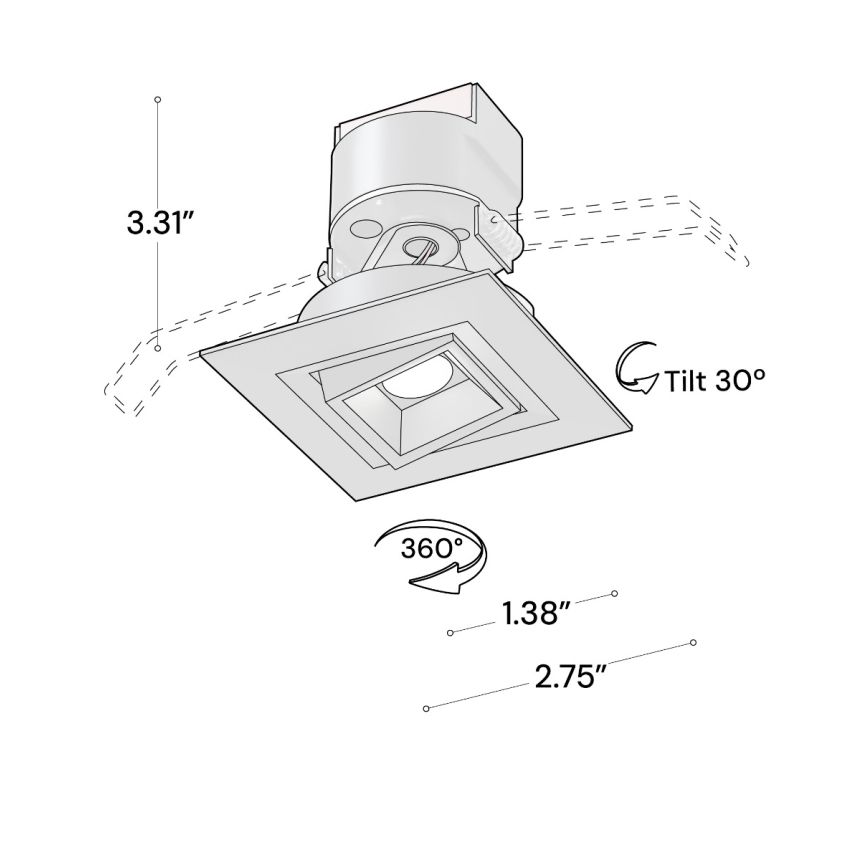

- Light direction, including direct downlight, adjustable and wall wash
- Optional features, such as occupancy sensors and emergency battery backup
Use the specification sheet to understand and find ordering information for the features you require. If you do not see a feature you need, call us. Additional customization options may be available upon request.
Please refer to the specification sheet for housing options available for each product. In general, most of products have several options based on the type of installation:

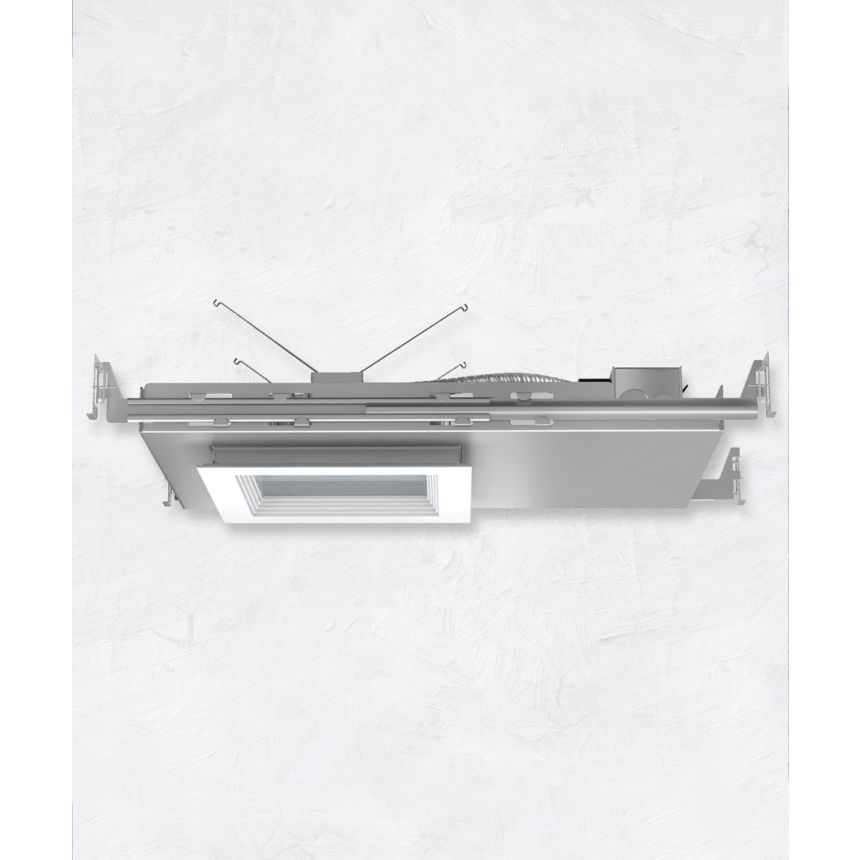

- New construction housing that’s non-IC rated suits installations where contact with insulation is not a concern
- IC-rated new construction housing offers safety and efficiency when the installation requires contact with insulation
- Fire-rated new construction housing offers added protection in areas that require fire integrity
- For retrofit projects, you can also opt for no housing for easier installation

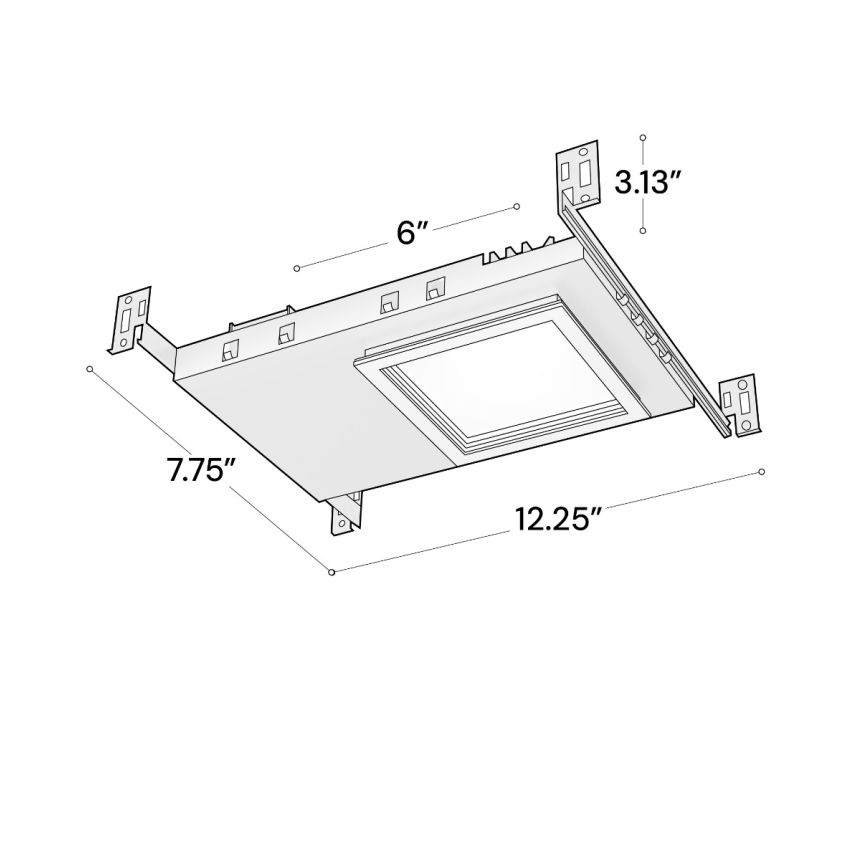

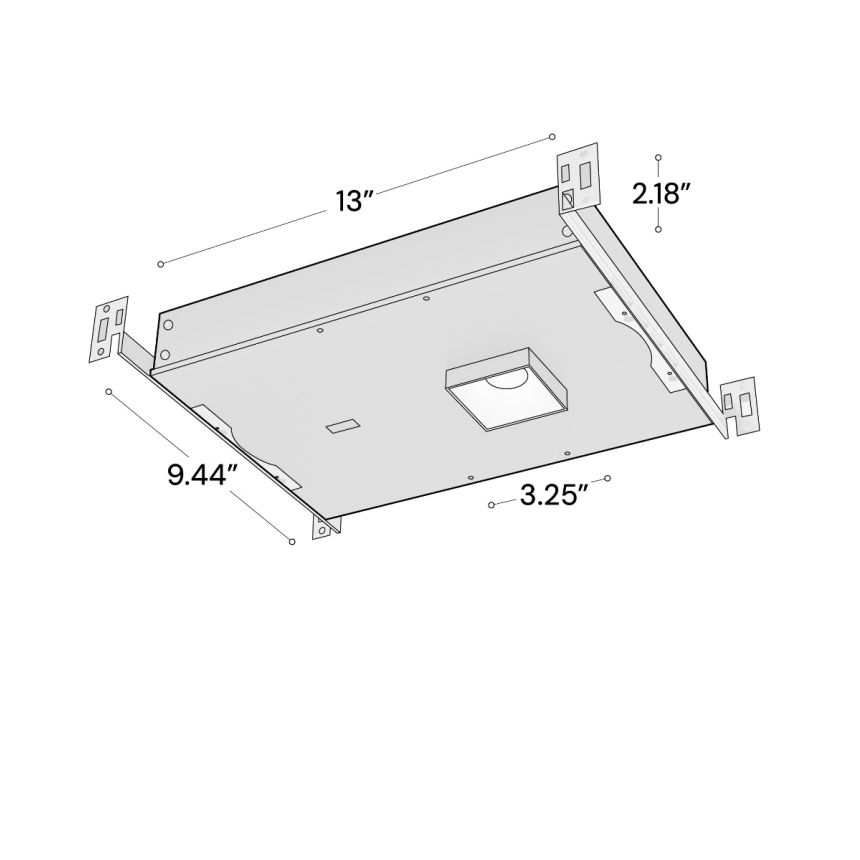

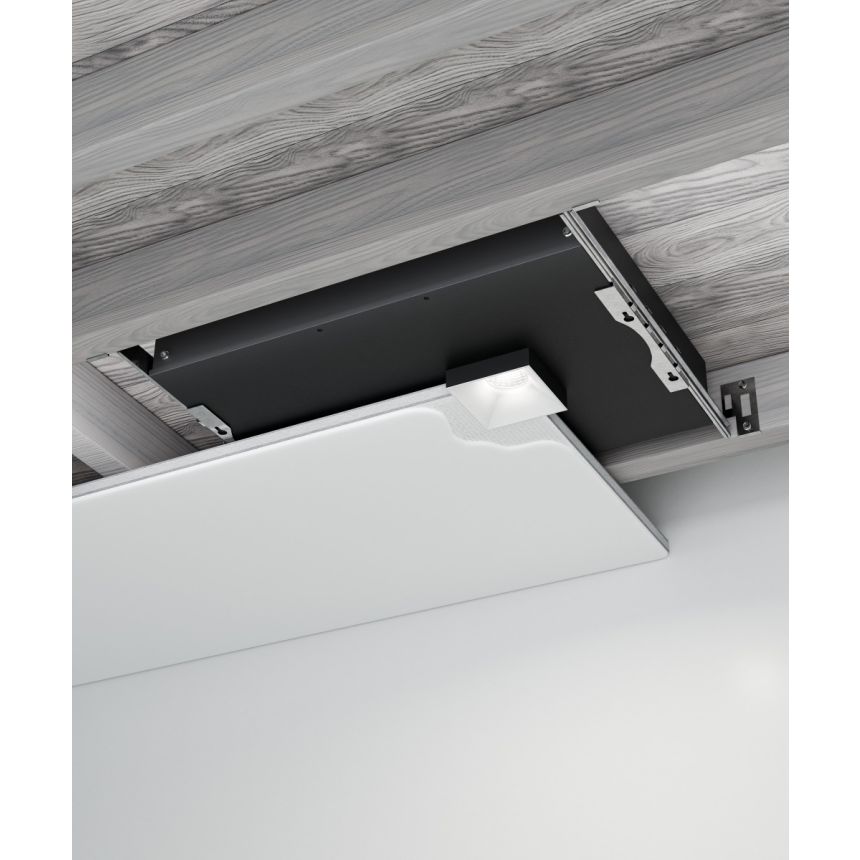

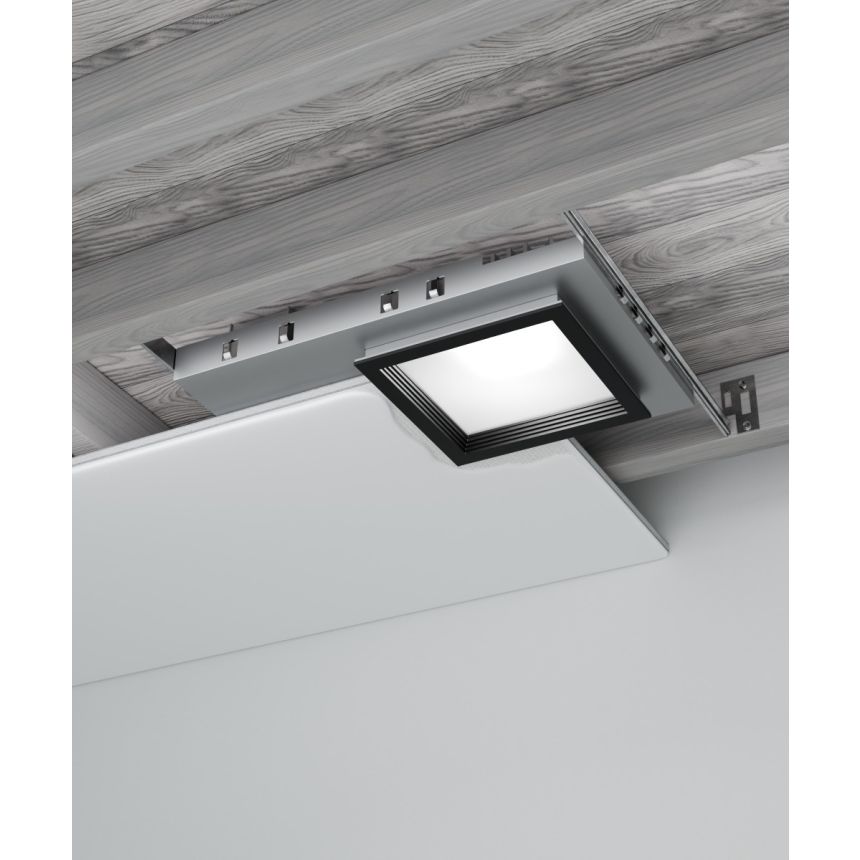

Some products also feature shallow or super shallow housing profiles designed for low plenums.
Color temperature options vary by product. Most products offer static or field adjustable color temperature options and at least one color tuning option:
- Three or five-position color temperature selection controls provide set color temperatures controlled by a switch
- Dim-to-warn color tuning provides color temperature controls from 1800K to 2700K
- Tunable-white controls allow occupants to control color temperature from 2700K to 5000K
- RGBW color-changing controls offer RGB color selection with tunable white controls
Please refer to the specification sheet for options available on each product.
-
Many products featured in this catalog are damp or wet location-rated. A damp location rating means a product is suitable for use outdoors under cover, while a wet location-rated product is safe for direct exposure to rain and snow.
In some cases, the wet location rating may be optional. Refer to Options on the specification sheet when ordering lights for outdoor use to specify wet location.
For downlights that offer open and lensed options, choose the lensed option. Most of our lensed downlights have frosted lenses designed to reduce glare. Baffle reflectors also control light distribution, helping to reduce glare. Choosing a wider beam spread can also help minimize glare, but plan your layout carefully to avoid shadowing between fixtures.
Yes. Most products in this catalog are compatible with 0-10V, ELV and TRIAC drivers. Some products are also compatible with MLV systems. Please check Dimming on the specification sheet to affirm a product is compatible.
Specify the Perfect Recessed Lights for Your Project
We take pride in assisting you and crafting the right luminaires for any commercial, hospitality or residential project. These high-performance square recessed LED lights provide improved color rendering and advanced controls while enhancing the appearance of a space.
Whether you’re specifying lights for new construction or retrofitting an existing space with efficient LED lighting, our team is here to help achieve the design you envision. You can download spec sheets and IES files from any product page or by clicking Files under each product listing on this catalog.
If you have questions or would like complimentary layout assistance, call us to speak with an Alcon Lighting sales consultant.
