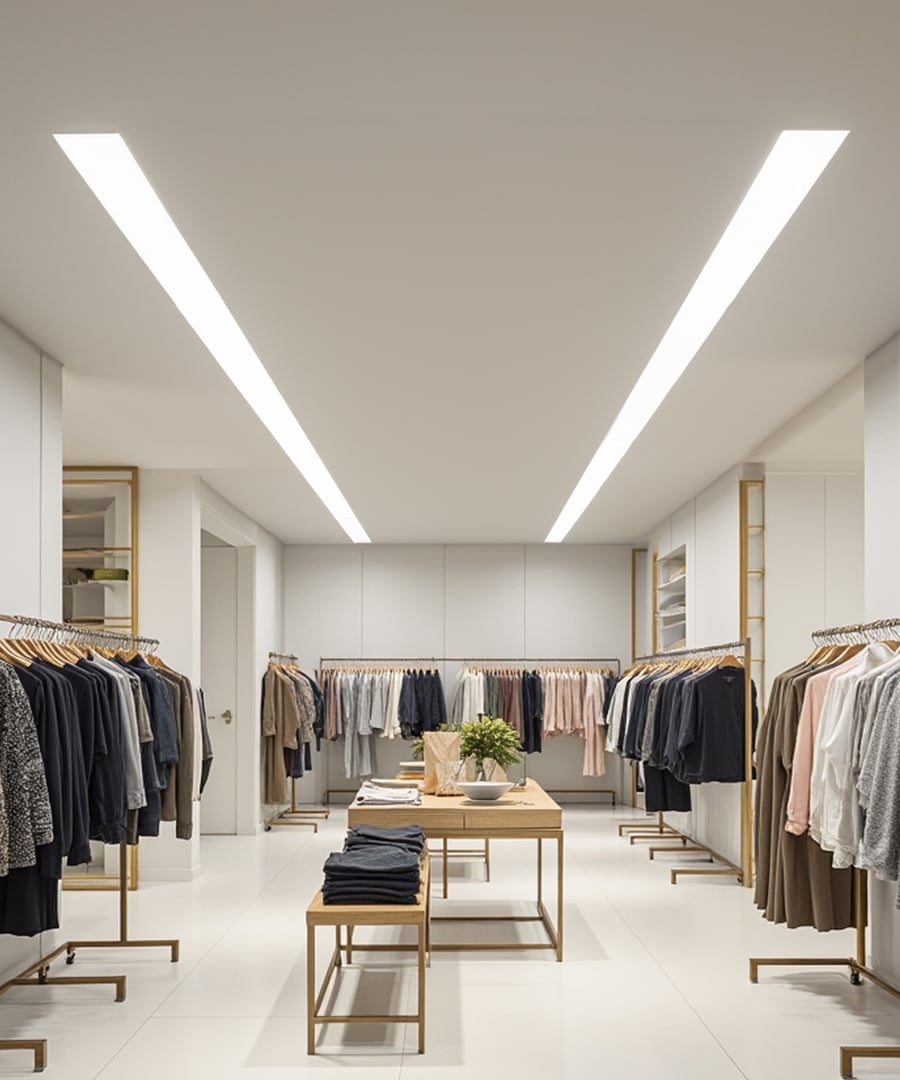

3.75-Inch LED Linear Recessed Light
by Alcon Lighting
Model 12100-33-R
$299.95
Built to order
Loading...
Details
Description
Our linear recessed light features an extruded aluminum housing with a powder coat finish and a frosted 3.75-inch lens. The channel light offers flexible design options with tandem mounting for continuous runs and corner connectors for geometric shapes. The LED light operates at selectable wattages of 5, 7.5 and 10 watts per foot with field-adjustable color temperature between 3000K, 3500K and 4000K, delivering 550 to 1100 lm. The LED driver supports standard 0-10V dimming down to 10% and optional emergency backup ensures 90-minute operation during outages.
Manufacturer
Alcon Lighting
Model
12100-33-R
Lead Time
Ships in: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, UL, Damp Location
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Occupancy Sensor, Emergency Backup Battery
Dimming
0-10V
Lumens per foot
100 - 599 Lumens, 600 - 1199 Lumens, 1200 - 2199 Lumens
Wattage
10 Watts, 5 Watts, 7.5 Watts
Wattage
10W/7.5W/5W per foot
Voltage
120-277V
Finish
White, Black
Light Color
3000K, 3500K, 4000K
CRI
80+
Mounting
Recessed T-Bar, Recessed Screw Slot
Light Direction
Direct Downlight
Height
3.75"
Length
2 feet, 3 feet, 4 feet, 6 feet, 8 feet
Beam Spread
110°
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
