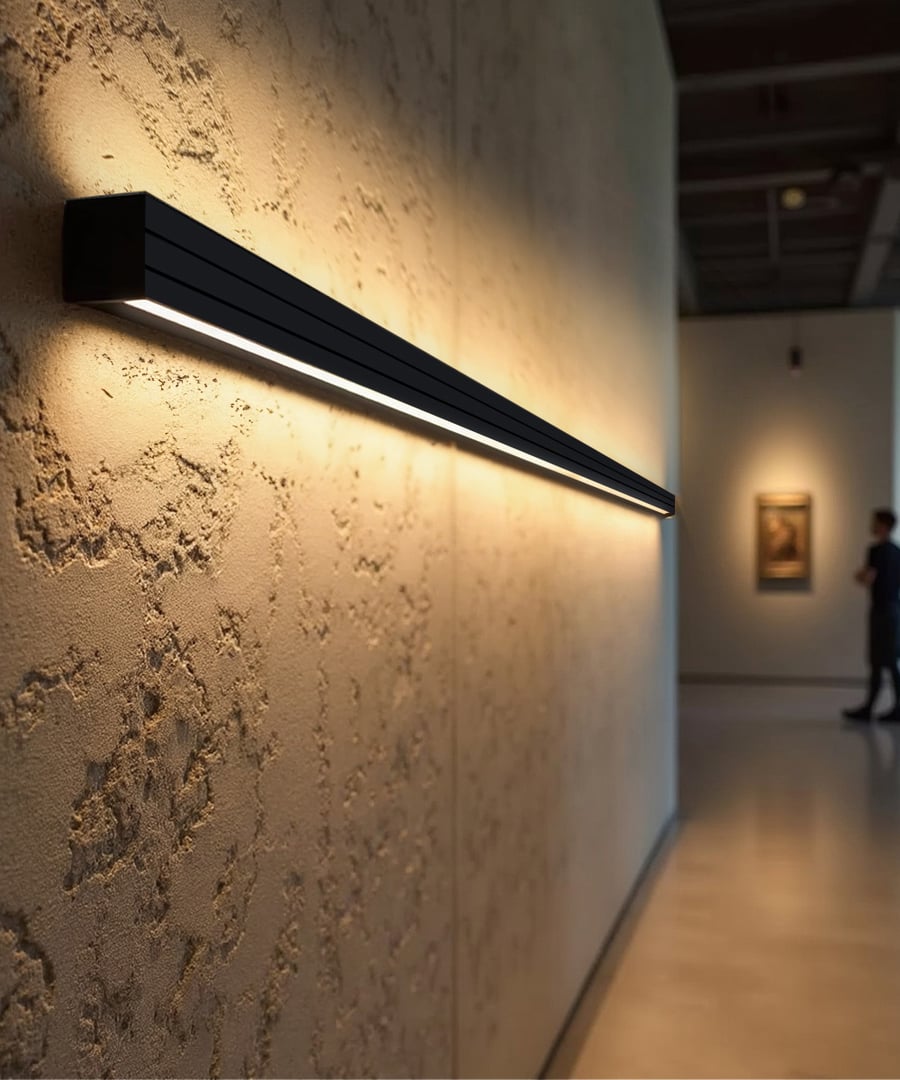

3.75-Inch Regressed LED Linear Wall Light
by Alcon Lighting
Model 12100-33-W-R
$299.95
Built to order
Loading...
Details
Description
The 3.75-inch linear wall light comes with an extruded aluminum housing finished in a durable powder coat. Designed for continuous runs of up to 40 feet at 120V and 100 feet at 277V, the wall light features a regressed lens to reduce glare, delivering 450 to 900 lumens in full downlight mode and 500 to 1,000 lumens in a 50/50% uplight and downlight setting. The fixture includes a 7-position DIP switch for directional lighting, CCT adjustable settings (3000K, 3500K, 4000K), 0-10V dimming and optional emergency backup. Damp location rated for outdoor use under cover.
Manufacturer
Alcon Lighting
Model
12100-33-W-R
Lead Time
Ships in: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, UL, Damp Location
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Light Direction Selectable Switch, Emergency Backup Battery
Dimming
0-10V
Lumens per foot
100 - 599 Lumens, 600 - 1199 Lumens, 1200 - 2199 Lumens
Wattage
10 Watts, 5 Watts, 7.5 Watts
Wattage
10W/7.5W/5W per foot
Voltage
120-277V
Finish
White, Black
Light Color
3000K, 3500K, 4000K
CRI
80+
Mounting
Wall
Light Direction
Direct/Indirect
Height
3.75"
Length
2 feet, 3 feet, 4 feet, 6 feet, 8 feet
Beam Spread
110°
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
