4-Inch LED Recessed Wall Wash Linear Light
by Alcon Lighting
Model 12100-40-R-WW
$559.95
Built to order
Ships in: 1-2 weeks
Downloads
- Specification Sheet
- Drywall Installation Instructions
- Screw Slot Installation Instructions
- T-Bar Installation Instructions
- Spackle Flange (Trimless) Installation Instructions
- 90° Installation Instructions
- Lens Installation/Removal Instructions
- Driver Maintenance Instructions
- Emergency LED Driver Specifications
- Vive by Lutron™ - Specification Sheet
- Vive by Lutron™ - Brochure
- IES Files
- Non-Flanged Recessed Installation Instructions
Loading...
Details
Description

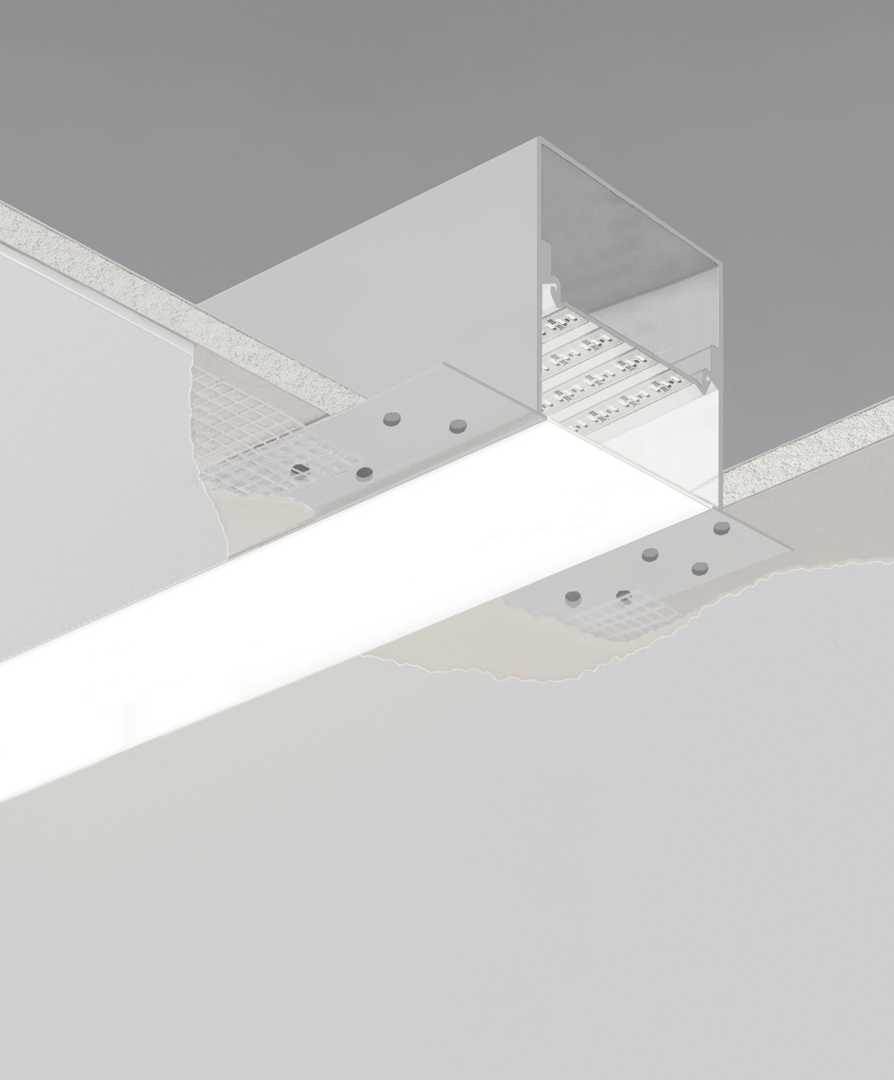

This trimless, linear recessed LED wall wash light for interior soffit application offers versatility and performance. Select voltage, color temperature, sensor and dimming features, emergency backup battery, length, lumens and Color Rendering Index (CRI) specifications. The architectural recessed wall wash light features a 4-inch aperture with a frosted acrylic lens for even light distribution. The fixture comes in standard lengths from 2 feet to 8 feet and can tandem mount for seamless, continuous runs of any length.
Manufacturer
Alcon Lighting
Model
12100-40-R-WW
Lead Time
Ships in: 1-2 weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, Damp Location, Assembled in USA ARRA, Buy American Act BAA, DLC, cULus
Wattage
25 Watts & Under, 25 to 49 Watts, 50 to 99 Watts
Voltage
120-277V
Finish
White, Black, Silver, Custom RAL (Extended Lead Time May Apply)
Light Color
2700K, 3000K, 3500K, 4000K, 5000K, Tunable White
CRI
80 is standard. 90 is an available option.
Driver
0-10V is standard. Other dimming drivers are available for an additional charge.
Width
4 inch
Features
Ceiling to wall, Continuous row
Mounting
Trimmed, Trimless, T-Bar Grid, Screw Slot Grid
Light Direction
Direct Downlight
Length
48"
Lumens per foot
500-1000
