4-Inch Linear Recessed Linear LED Light
by Alcon Lighting
Model 12100-40-R
$509.95
Built to order
Ships in: 1-2 weeks
Downloads
- Specification Sheet
- Drywall Installation Instructions
- Screw Slot Installation Instructions
- T-Bar Installation Instructions
- Spackle Flange (Trimless) Installation Instructions
- 90° Installation Instructions
- Lens Installation/Removal Instructions
- Driver Maintenance Instructions
- Emergency LED Driver Specifications
- Vive by Lutron™ - Specification Sheet
- Vive by Lutron™ - Brochure
- IES Files
- Non-Flanged Recessed Installation Instructions
Loading...
Details
Description

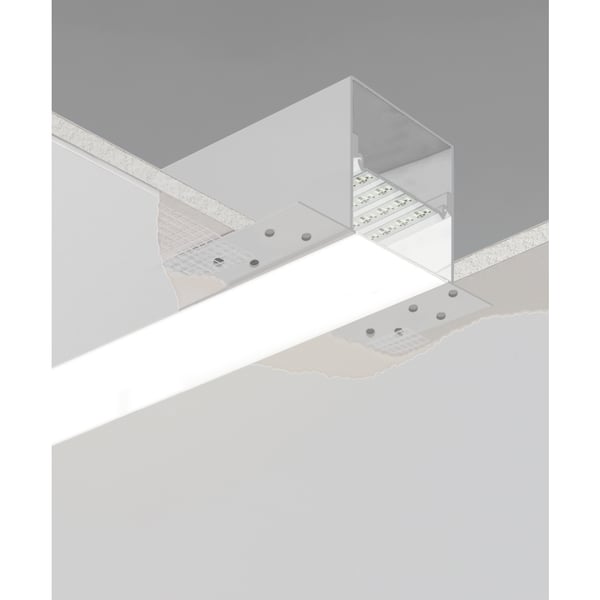

This trimless, linear recessed LED light for interior soffit application comes with a variety of options. Select voltage, color temperature, sensor and dimming features, emergency backup battery, length, lumens output and Color Rendering Index (CRI) specifications. Our architectural 4-inch linear light comes in standard lengths from 2 feet to 8 feet, or tandem mounts for seamless runs of any length. Frosted lens included.
Manufacturer
Alcon Lighting
Model
12100-40-R
Lead Time
Ships in: 1-2 weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, Damp Location, Assembled in USA ARRA, Buy American Act BAA, DLC, cULus
Wattage
25 Watts & Under, 25 to 49 Watts, 50 to 99 Watts
Voltage
120-277V
Finish
White, Black, Silver, Custom RAL (Extended Lead Time May Apply)
Light Color
2700K, 3000K, 3500K, 4000K, 5000K, Tunable White
CRI
80 is standard. 90 is an available option.
Driver
0-10V is standard. Other dimming drivers are available for an additional charge.
Width
4 inch
Features
Ceiling to wall, Continuous row
Mounting
Trimmed, Trimless, T-Bar Grid, Screw Slot Grid
Light Direction
Direct Downlight
Length
48"
Lumens per foot
500-1000
