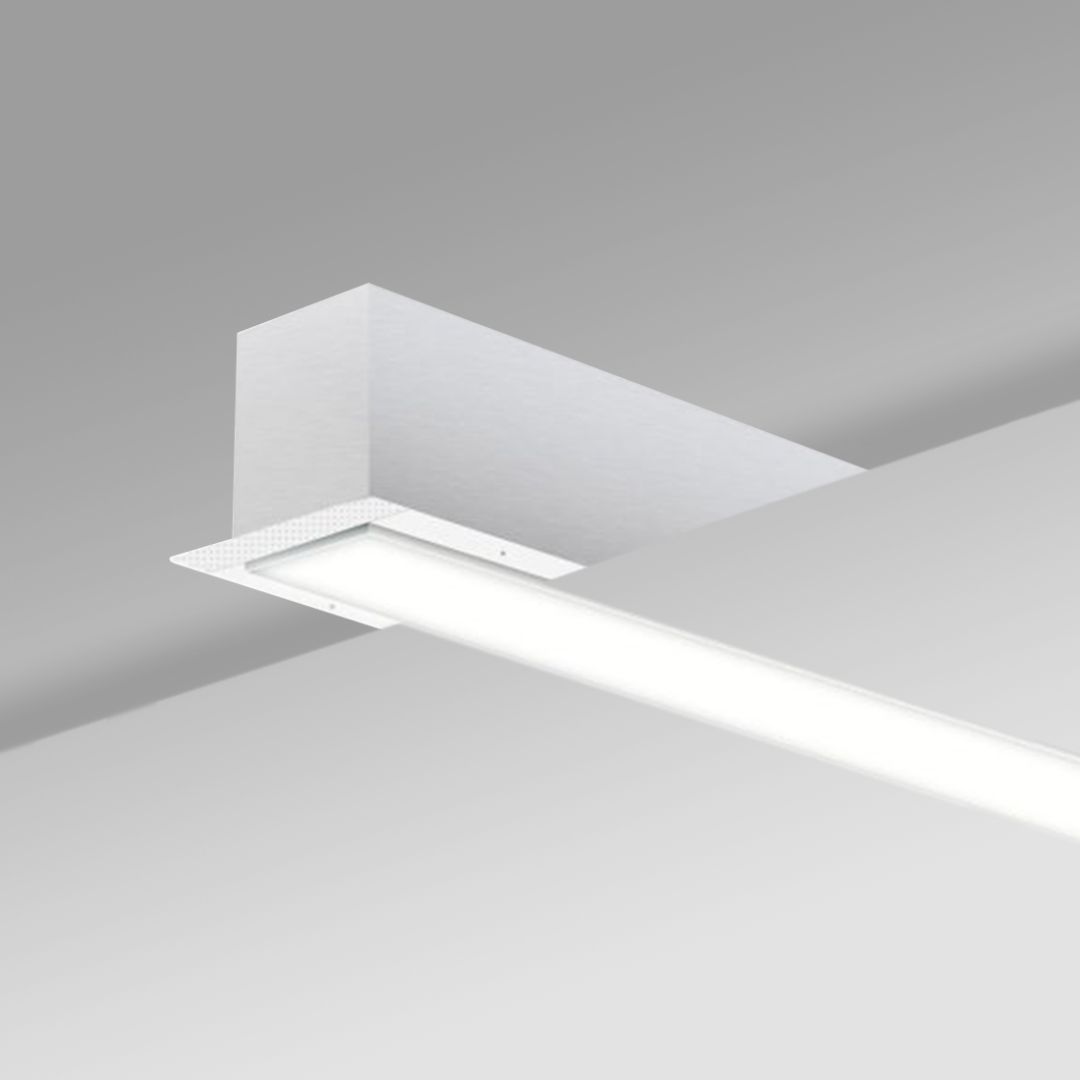

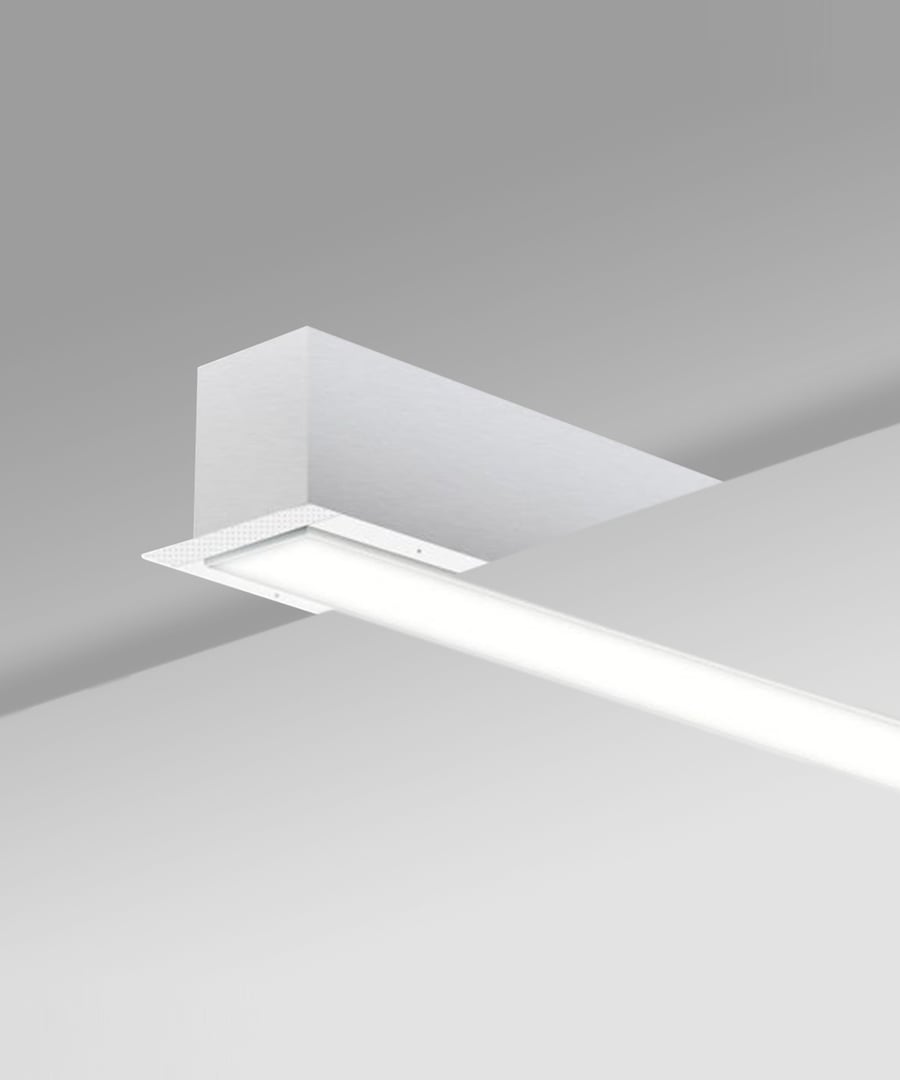

2.5-Inch Antimicrobial Linear LED Recessed Light
by Alcon Lighting
Model 12500-20-R
$629.95
Built to order
Downloads
- Specification Sheet
- Drywall Installation Instructions
- Screw Slot Installation Instructions
- T-Bar Installation Instructions
- Spackle Flange Installation Instructions
- 90° Installation Instructions
- Emergency LED Driver Specifications
- Lens Installation/Removal Instructions
- Vive by Lutron™ - Specification Sheet
- Vive by Lutron™ - Brochure
- IES Files
Loading...
Details
Description
This antimicrobial linear recessed light, built from 22-gauge cold rolled steel, features an antimicrobial finish that prevents bacterial growth on exposed painted surfaces. Create continuous runs with tandem mounting and geometric design with pre-fabricated and fully illuminated corners. A 2.5-inch snap-in glare-free frosted acrylic flat or 1/2" drop lens offers even light distribution. Customize illumination with RGBW color changing and tunable white technology with Bluetooth Mesh controls or 0-10V, TRIAC, ELV, bi-level or tri-level step dimming for static color temperatures. Suitable for damp locations.
Manufacturer
Alcon Lighting
Model
12500-20-R
Lead Time
Ships-in: 4-6 Weeks
Return Policy
Built to order. Restocking fees may apply.
Qualifications
cULus, DLC, Assembled in USA (ARRA)
Features
Occupancy Sensor, Daylight Sensor, Emergency Backup Battery, Antimicrobial Coating, 0-10V 5-Wire dimming is standard. Other options available for an additional charge., Damp-Location Rated
Lumens per foot
100-2499 Lumens, 2500-4900 Lumens, 5000-9999 Lumens, 10000-19999 Lumens
Wattage
25 Watts & Under, 25 to 49 Watts, 50 to 99 Watts, 100 to 149 Watts, 18 Watts, 27 Watts, 36 Watts, 54 Watts
Voltage
120-277V
Finish
White
Light Color
2700K @ 90+ CRI and 3000K, 3500K, 4000K and 5000K @ 80+ CRI are standard. 2000K-6500K tunable white and RGBW are available for an additional charge.
CRI
90+, 80+
Mounting
Recessed Trim Flange, Recessed Trimless (Drywall)
Light Direction
Direct Downlight
Width
2 inch
Length
4 feet, 8 feet
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
