Model 14061

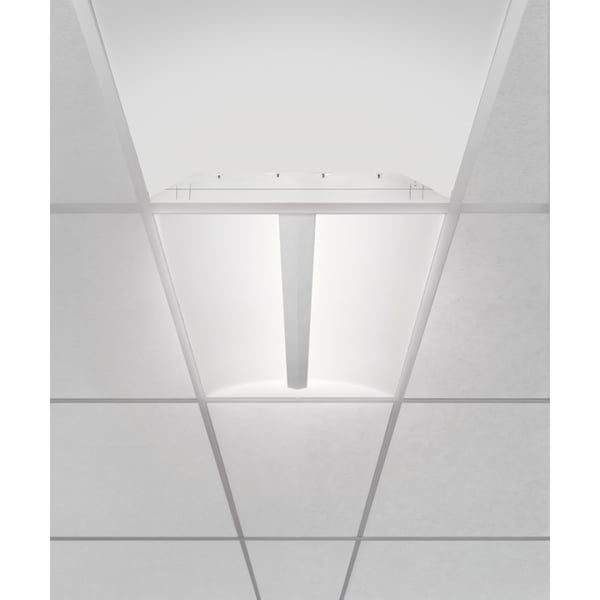

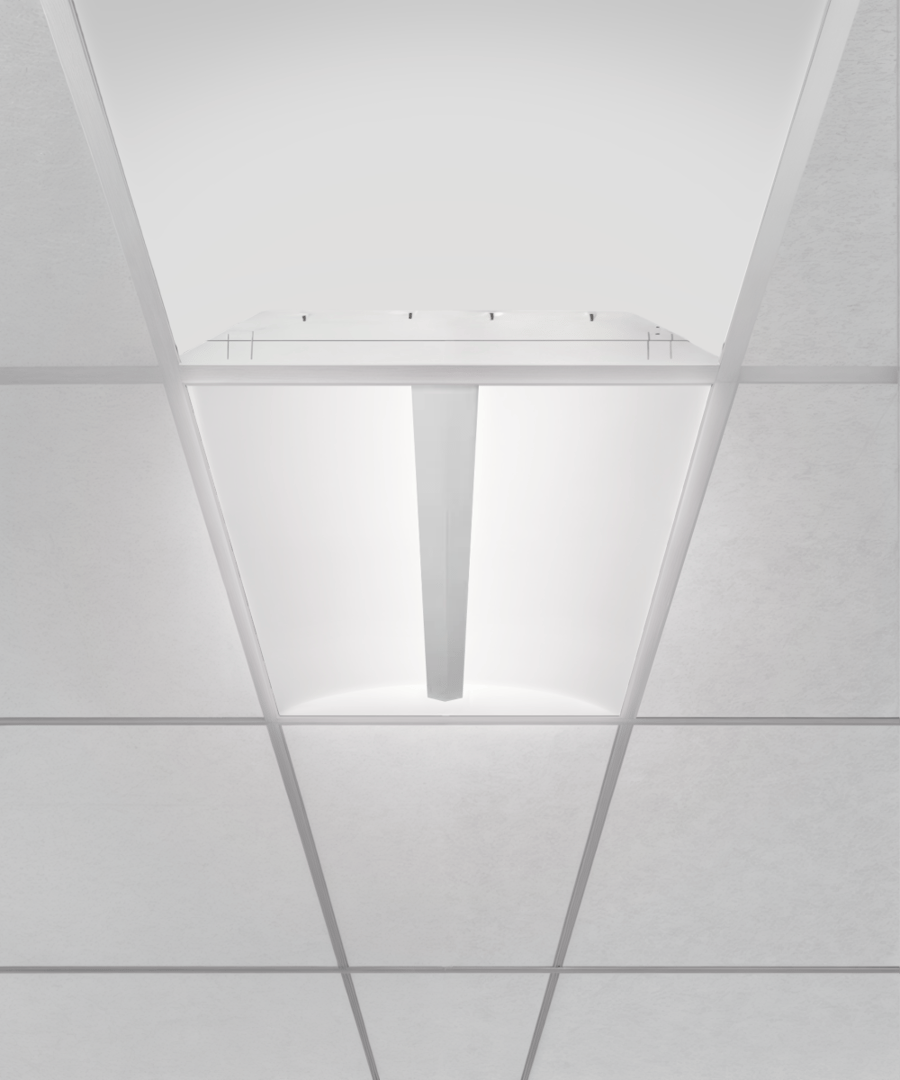

Decorative Recessed LED Troffer Light
By Alcon Lighting
Discontinued
Downloads
This architectural LED recessed troffer combines high-efficacy illumination with a sleek, modern design. Made from heavy-gauge cold-rolled steel, the LED troffer light is available in 1x4, 2x2 and 2x4 sizes, blending the classic look of fluorescent fixtures with advanced LED technology. The fixture delivers 4,650 to 25,000 lumens with with a static color temperature of 3000K, 3500K, 4000K or 5000K. Designed for commercial offices, hospitals, schools, government buildings, and public spaces, this product is compatible with standard 15/16” inverted T-bar grid ceilings for easy installation. A flange kit is also available for 2x2 and 2x4 sizes to accommodate drywall installations.
Manufacturer
Alcon Lighting
Model
14061
Lumen output
4650 lm, 7974 lm, 11150 lm, 12040 lm, 13016 lm, 15728 lm, 16500 lm, 20000 lm, 25000 lm
Lead Time
Availble to Ship in Fall 2025
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, ETL, cETLus, Damp Location, Made in USA
Features
Emergency Backup Battery
Dimming
0-10V
Wattage
33W, 57W, 80W, 86W, 93W, 112W, 118W, 143W, 179W
Voltage
120-277V
Finish
White
CCT
3000K, 3500K, 4000K, 5000K
CRI
80+
Mounting
Recessed Lay-In (T-Grid)
Light Direction
Direct Downlight
Shape
Rectangle, Square
Size
1' x 4', 2' x 2', 2' x 4'
Lumens per ft
911 lm/ft
