Model 15209-16-AL

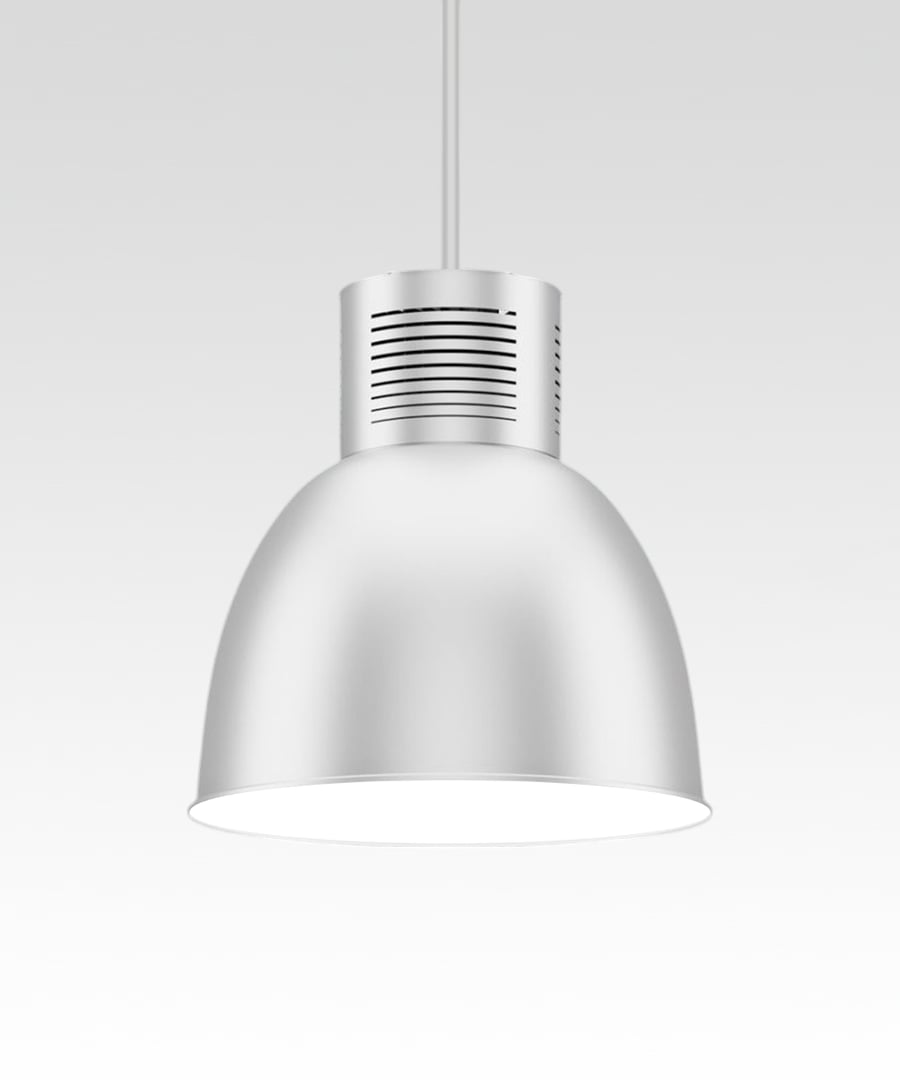

16-Inch Aluminum High Bay Dome LED Pendant Light

By Alcon Lighting
$547.95

Built to order

, ships-in: 4-6 weeks
Spec Grade UL ETL Damp Location Buy American Act (BAA) Made in USA
loader
Loading...

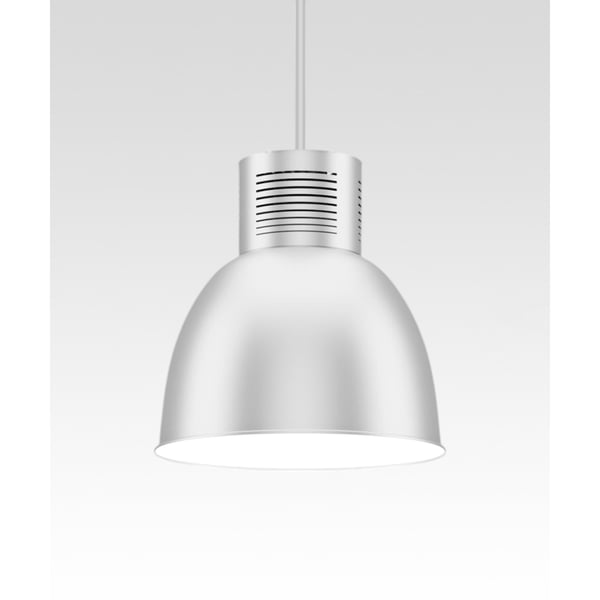

Designed for industrial and commercial spaces, the 16-inch LED dome pendant light produces high-output illumination for high-ceiling applications such as manufacturing floors, gymnasiums and large-scale storage areas. The industrial high bay features a 0.40" thick spun aluminum body with a polyester powder coat finish and a heavy-gauge aluminum reflector for rugged, glare-free performance. The USA-made high bay mounts with either an adjustable aircraft cable or a rigid stem with a 45º swivel to accommodate sloped surfaces. Output reaches up to 17,500 lumens in a static color temperature from 3000K to 5000K. Choose standard 80+ CRI or optional 90+ CRI and dimming from 3-wire TRIAC to 20% or 5-wire 0–10V to 1%.
Manufacturer
Alcon Lighting
Model
15209-16-AL
Lumen output
5000 lm, 6000 lm, 8000 lm, 10000 lm, 12000 lm, 15000 lm, 17500 lm
Lead Time
Ships-in: 4-6 Weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, UL, ETL, Damp Location, Buy American Act (BAA), Made in USA, LM79 Tested, LM80 Tested
Dimming
0-10V, TRIAC
Voltage
120-277V
Finish
White, Black, Silver, Bronze
CCT
3000K, 3500K, 4000K, 5000K
CRI
90+, 80+
Mounting
Pendant, Pendant Aircraft Cable , Pendant Stem
Light Direction
Direct Downlight
Shape
Dome
Beam Spread
60°, 70°, 80°
Lumens per ft
911 lm/ft
