Model 15209-16

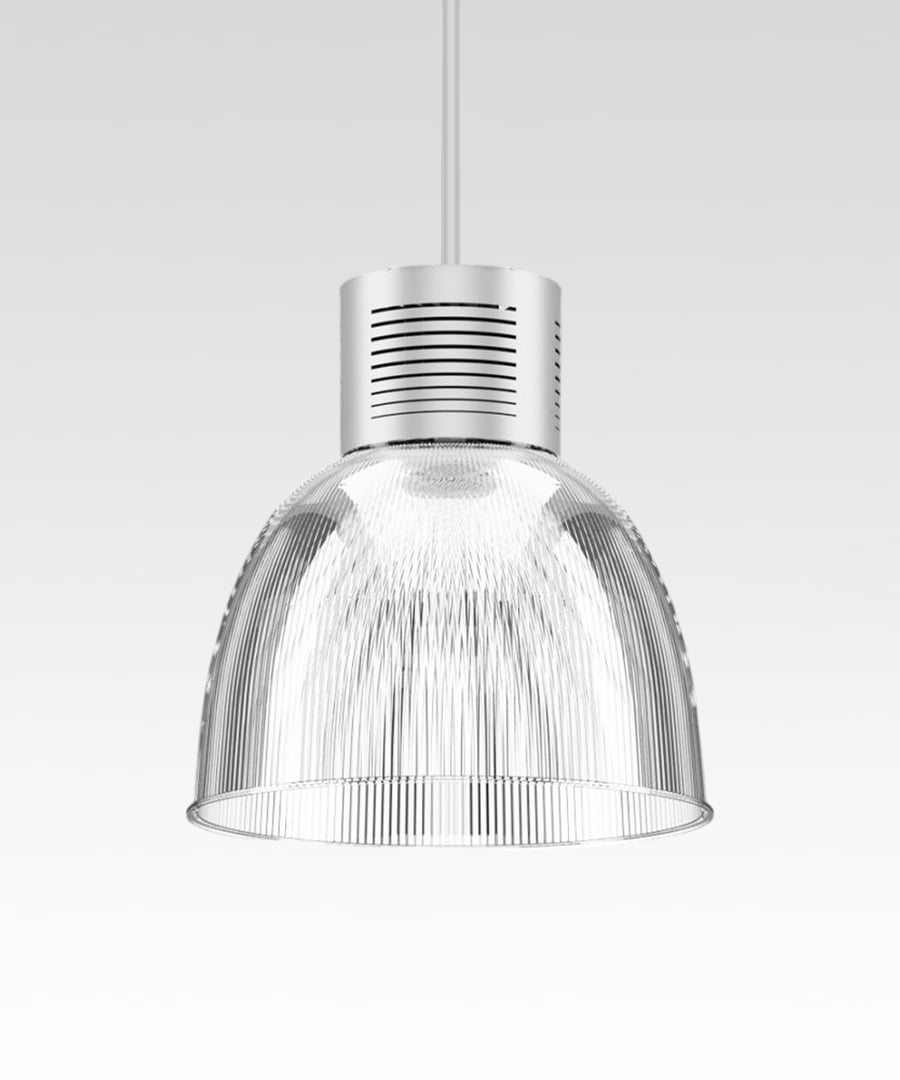

16-Inch Polycarbonate High Bay Dome LED Pendant Light

By Alcon Lighting
$547.95

Built to order

, ships-in: 4-6 weeks
Spec Grade UL ETL Damp Location Buy American Act (BAA) Made in USA
loader
Loading...

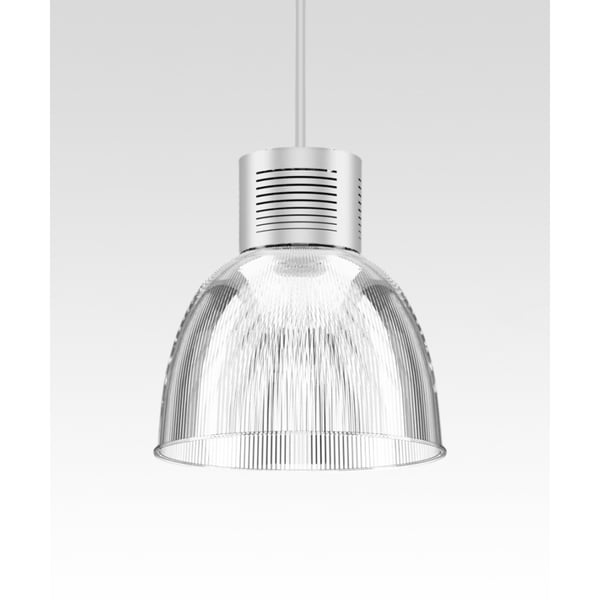

The 16-inch LED dome pendant delivers powerful illumination for high-ceiling commercial and industrial applications, including warehouses, gymnasiums and production areas. Built from a 0.64" thick spun aluminum cylinder with a polyester powder coat finish, the high bay features a heavy-duty polycarbonate refractor for long-term performance in harsh conditions. Easily install with a coiled or straight aircraft cable or use a hard stem with a 45º swivel canopy for angled ceilings. Made in the USA, this high-output pendant delivers up to 20,000 lumens at a static color temperature from 3000K to 5000K. Dimming options include 3-wire TRIAC to 20% or 5-wire 0–10V to 1%, with standard 80+ CRI or optional 90+ CRI.
Manufacturer
Alcon Lighting
Model
15209-16
Lumen output
5000 lm, 6000 lm, 8000 lm, 10000 lm, 12000 lm, 15000 lm, 17500 lm, 20000 lm
Lead Time
Ships-in: 4-6 Weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, UL, ETL, Damp Location, Buy American Act (BAA), Made in USA, LM79 Tested, LM80 Tested
Dimming
0-10V, TRIAC
Voltage
120-277V
Finish
White, Black, Silver, Bronze
CCT
3000K, 3500K, 4000K, 5000K
CRI
90+, 80+
Mounting
Pendant, Pendant Aircraft Cable , Pendant Stem
Light Direction
Direct Downlight
Shape
Dome
Beam Spread
60°, 70°, 80°
Lumens per ft
911 lm/ft
