Model 16003-11
, ships in: 3-7 business days

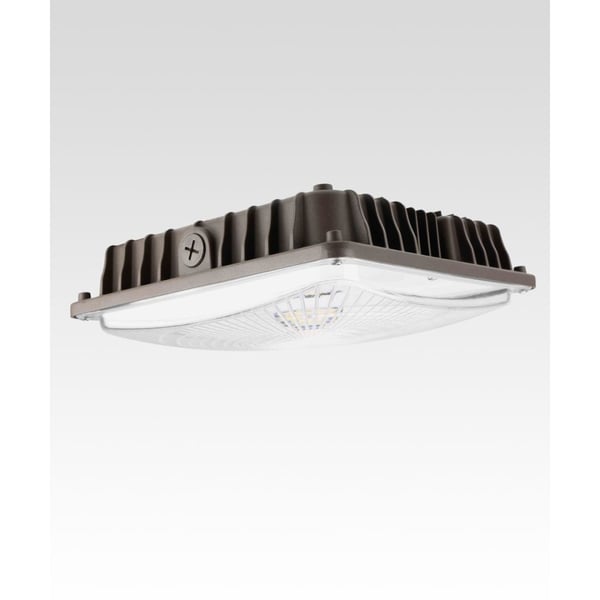

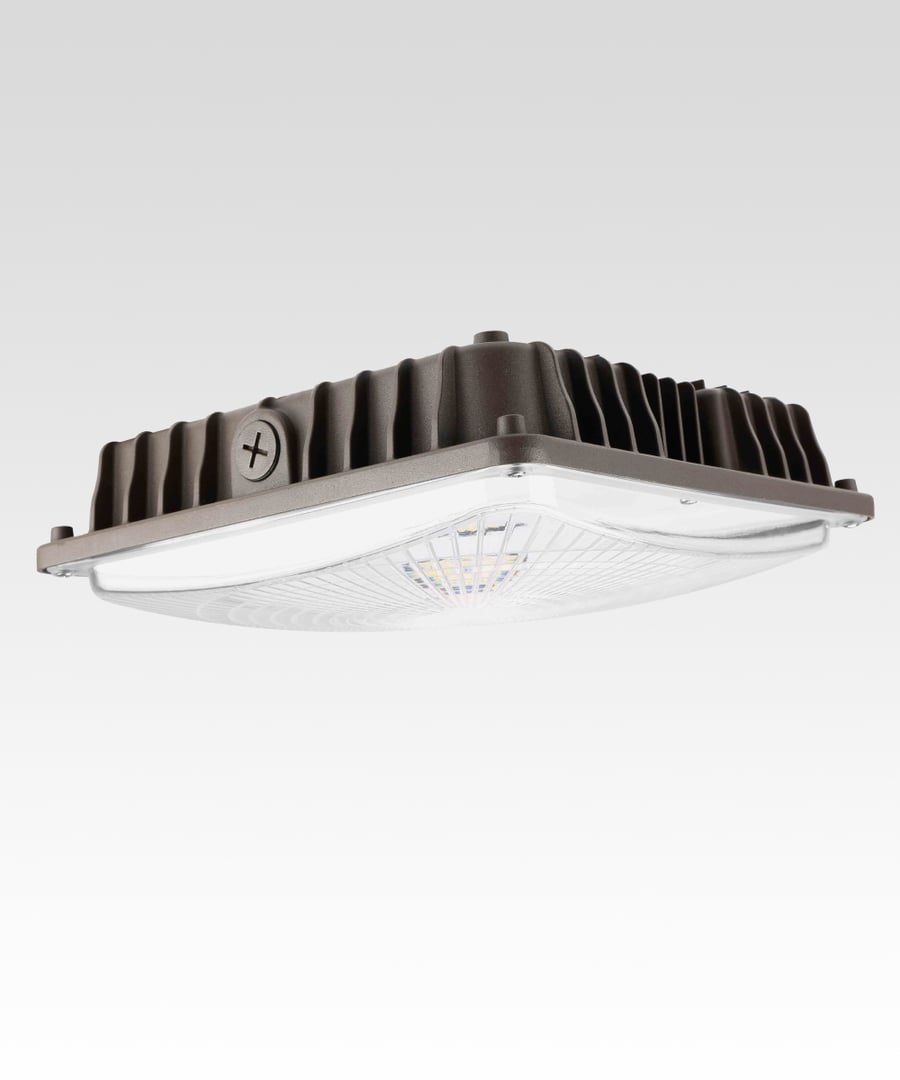

11.5-Inch Square LED Canopy Light
By Alcon Lighting
$169.95
Built to order
Loading...
Downloads
This 11.5-inch square LED canopy light delivers high-output illumination with energy-efficient performance for commercial, retail, and educational spaces. Its robust housing enhances heat dissipation, extending longevity, while an advanced optical lens reduces glare for improved visual comfort. The fixture offers selectable wattage settings (41W, 63W, 85W, and 110W), producing 6,800 to 16,500 lumens at 3000K, 4000K, or 5000K color temperatures. Optional PIR motion sensing and a 5W emergency battery backup add versatility. Designed for easy installation, it includes a quick-mounting plate for J-BOX compatibility, supports 3/4” pendant mounting, and features 1/2” knock-outs for surface conduit wiring.
Manufacturer
Alcon Lighting
Model
16003-11
Lumen output
6800 lm, 7000 lm, 7200 lm, 9800 lm, 10000 lm, 10500 lm, 12800 lm, 13000 lm, 13600 lm, 15500 lm, 16000 lm, 16500 lm
Lead Time
Ships in: 3-7 Business Days
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, cULus, DLC Premium, Wet Location
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Motion Sensor, Emergency Backup Battery
Dimming
0-10V
Wattage
41W/63W/85W/110W
Voltage
120-277V
Finish
White, Black, Dark Bronze
CCT
3000K, 4000K, 5000K
CRI
70+
Mounting
Pendant, Surface
Light Direction
Direct Downlight
Shape
Square
