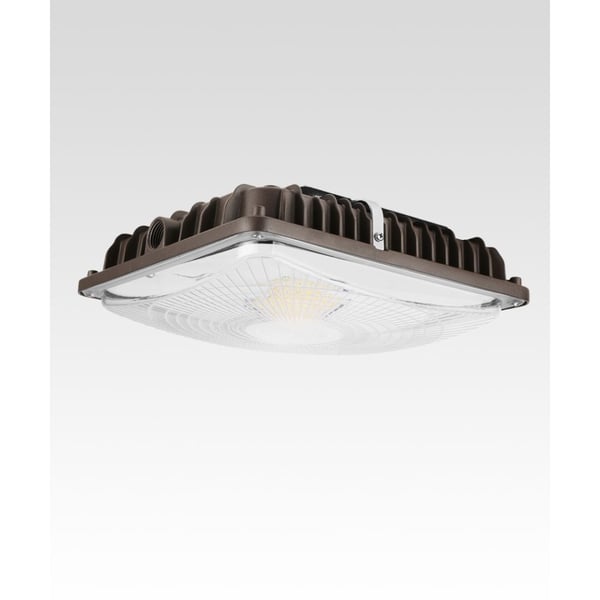

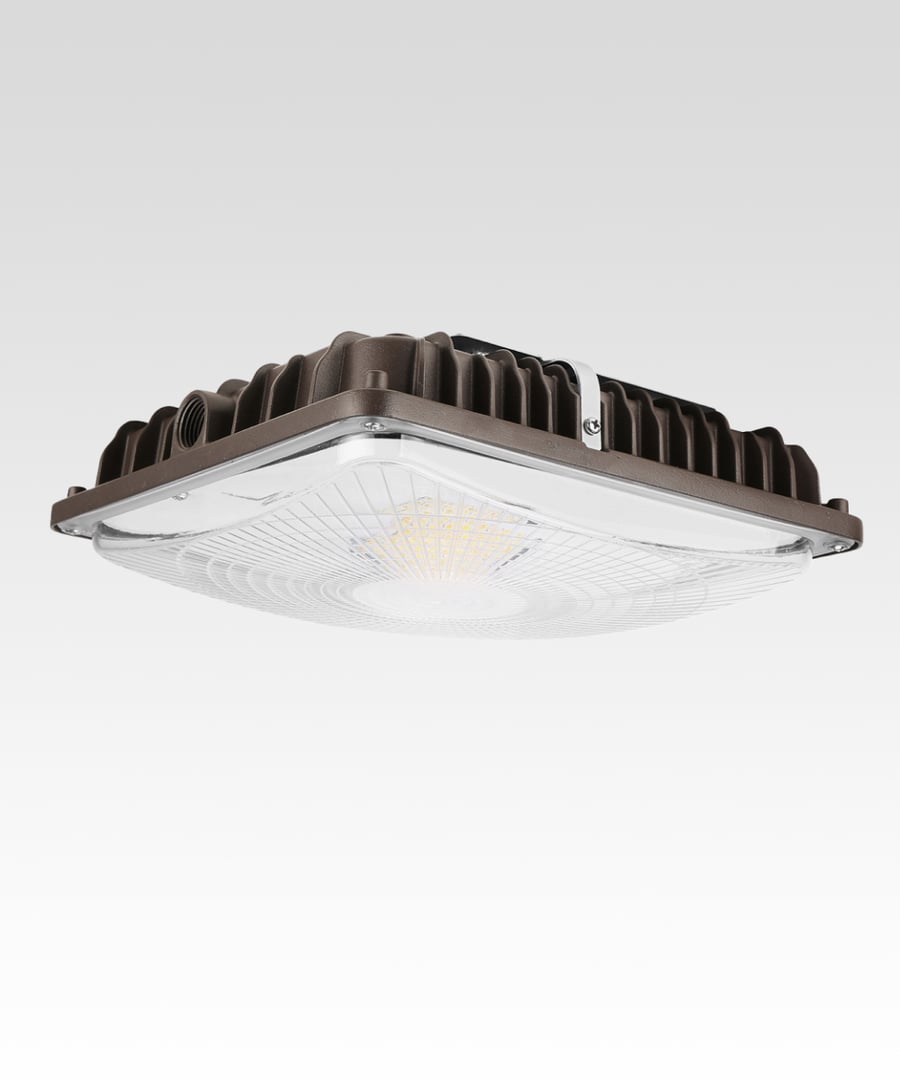

9.5-Inch Square LED Canopy Light
by Alcon Lighting
Model 16003-9
Details
Description
This 9.5-inch square LED canopy light is an efficient solution for commercial, retail and educational spaces. The durable housing enhances heat dissipation for a longer lifespan, while a precision optical lens reduces glare and improves illumination. The fixture offers up to 60W output with adjustable settings (24W, 36W, 47W, and 60W), delivering 3,700 to 8,400 lumens at selectable 3000K, 4000K or 5000K. Optional features include a PIR motion sensor and a 5W emergency battery backup. Designed for easy installation, this product includes an external quick-mounting plate for J-BOX mounting and supports a 3/4” pendant mount, with 1/2” knock-out holes for surface conduit wiring.
Manufacturer
Alcon Lighting
Model
16003-9
Lumen output
3700 lm, 3800 lm, 4000 lm, 5200 lm, 5300 lm, 5600 lm, 6600 lm, 6500 lm, 7000 lm, 7800 lm, 8000 lm, 8400 lm
Lead Time
Ships in: 3-7 Business Days
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, cULus, DLC Premium, Wet Location
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Motion Sensor, Emergency Backup Battery
Dimming
0-10V
Wattage
25 Watts & Under, 25 to 49 Watts, 50 to 99 Watts
Wattage
24W/36W/47W/60W
Voltage
120-277V
Finish
White, Black, Dark Bronze
CCT
3000K, 4000K, 5000K
CRI
70+
CRI
70+
Mounting
Pendant, Surface
Light Direction
Direct Downlight
