Model 12100-40-R-RGBW
, availble to ship in fall 2025

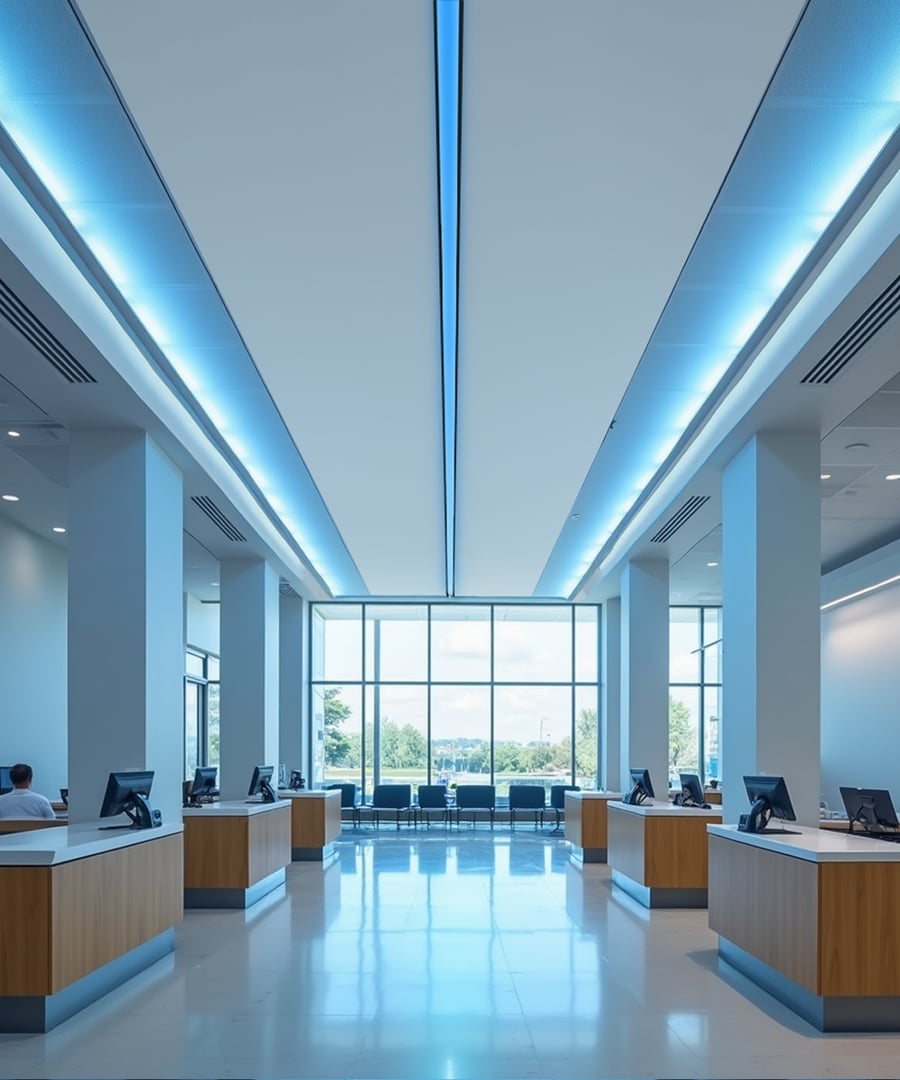

4-Inch RGBW Color-Changing Linear Recessed LED Light
By Alcon Lighting
$839.95
Built to order
Loading...
Downloads
- Specification Sheet
- Drywall Installation Instructions
- Screw Slot Installation Instructions
- T-Bar Installation Instructions

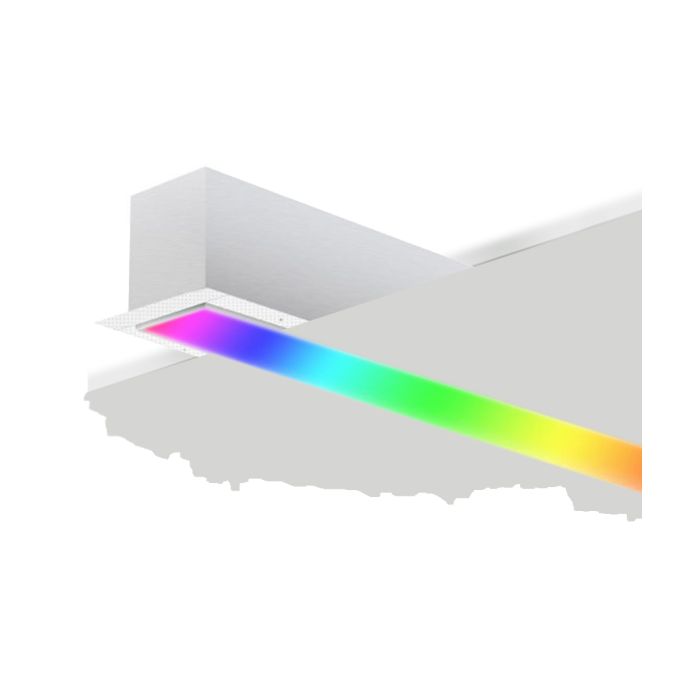

- Spackle Flange (Trimless) Installation Instructions
- 90° Installation Instructions
- RGBW-SZ Instructions
- RGBW-MZ Instructions
- Emergency LED Driver Specifications
- Bluetooth App Specifications
- Non-Flanged Recessed Installation Instructions
- RGBW-DMX5V Installation Instructions

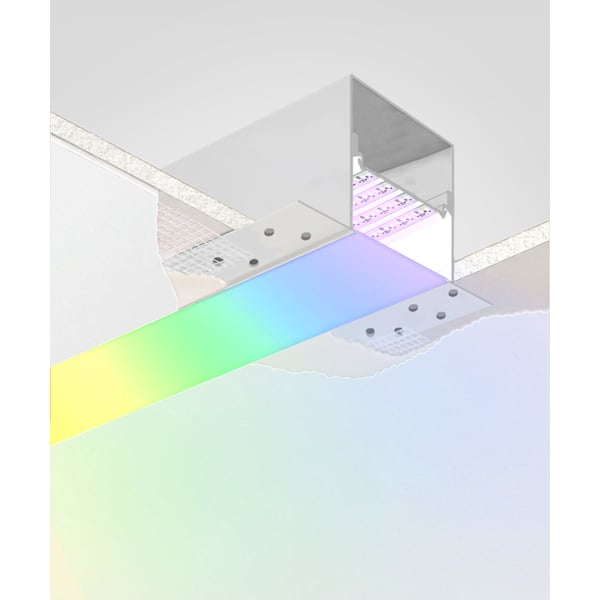

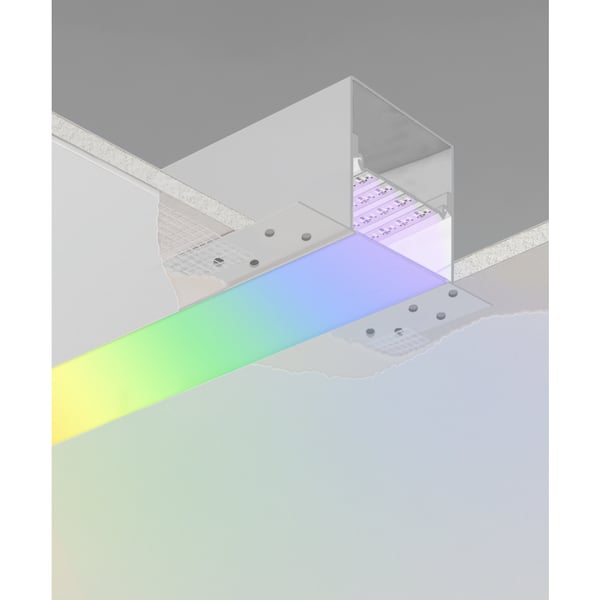

This 4-inch RGBW linear recessed LED light delivers advanced RGBW color-changing technology with superior color rendering capabilities, producing 2,252 lumens per 4-foot section. The LED light's frosted, glare-free lens ensures uniform light distribution, while durable 22-gauge die-formed steel construction enhances reliability. Multiple control options, including Bluetooth Mesh, RF remote and DMX wall controls, enable precise color tuning for dynamic lighting effects. Available in 2’, 3’, 4’, 6’ and 8’ lengths, this recessed linear fixture features quick-connect harnesses for seamless continuous runs and fully illuminated corner connectors for geometric designs. Higher-lumen packages are available upon request.
Manufacturer
Alcon Lighting
Model
12100-40-R-RGBW
Lead Time
Availble to Ship in Fall 2025
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, cULus, DLC, Damp Location, Buy American Act (BAA), Assembled in USA (ARRA)
Features
Continuous Run, Ceiling to wall, RGBW
Control
Wireless Remote (RF), Mobile Application + WiFi, Mobile Application + Bluetooth, DMX Wall
Wattage
9.3W/ft, 18.6W/ft
Voltage
120-277V
Finish
White, Black, Silver, Custom RAL (Extended Lead Time May Apply)
CCT

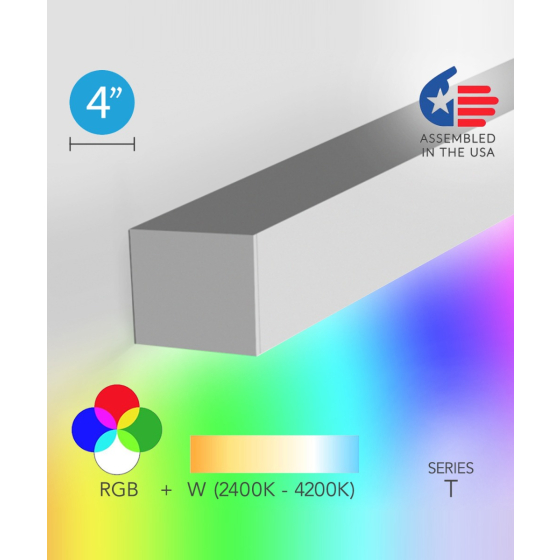

RGB + W (3000K), RGB + W (4000K)
Mounting
Recessed, Recessed Trim Flange, Recessed Trimless (Drywall), Recessed T-Bar, Recessed Screw Slot
Light Direction
Direct Downlight
Shape
Linear
Lumens per ft
563 lm/ft, 1126 lm/ft
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
