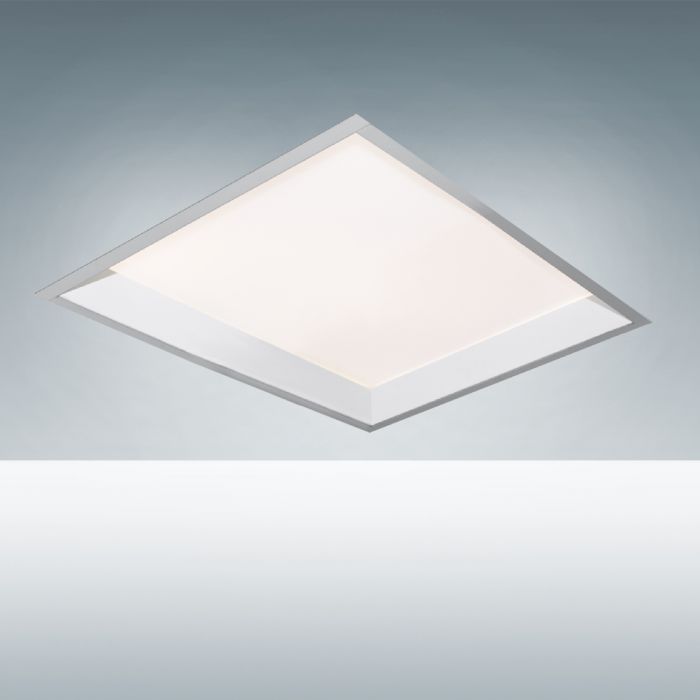

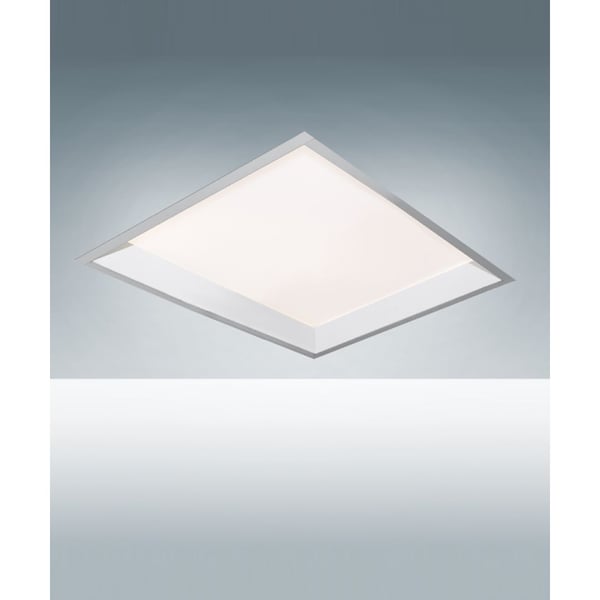

Model 14090
Wattage-Selectable Regressed LED Flat Panel Light
By Alcon Lighting
Discontinued
Downloads
The regressed flat panel light features an innovative recessed shroud and flat panel combination crafted from sealed high-grade aluminum. Designed for T-Bar recessed mounting with a ballast box, the light ensures an aesthetically pleasing appearance, resembling a skylight. A diffused frosted lens ensures even, UV/IR-free light distribution with 5-wire 0-10V dimming. Enjoy precise field-adjustable lighting control with a 4-position color temperature switch and a 3-position wattage/lumen switch.
Manufacturer
Alcon Lighting
Model
14090
Lead Time
Ships in: 3-7 Business Days
Return Policy
Built to order. Restocking fees apply.
Qualifications
cULus, Assembled in USA (ARRA)
Dimming
0-10V
Voltage
120-277V
Finish
White
CCT
Color Temperature Switch
CRI
80+
Shape
Square
Size
1' x 4', 2' x 2', 2' x 4'
