Alcon Lighting 12106-8 Ashton Architectural LED Perforated Linear Pendant Lighting Direct/Indirect Fixture - 8 Foot
Built to order
Details
Description

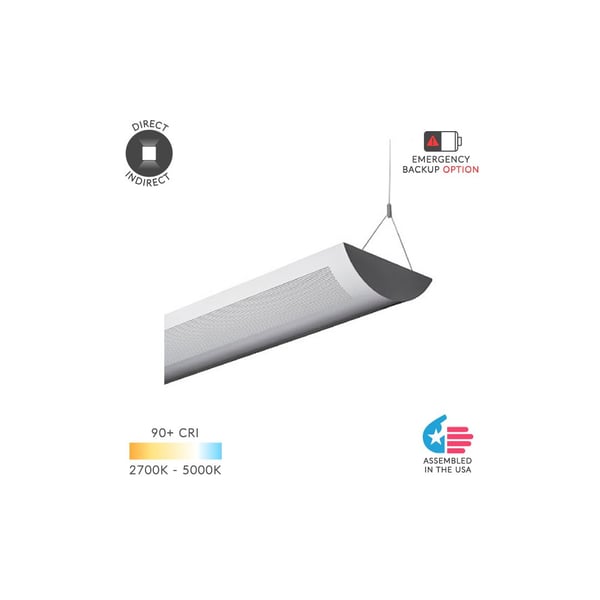

The Ashton Architectural LED Pendant Lighting Direct/Indirect Light Fixture delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish linear chandelier designs offer excellent direct and indirect lighting and exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The integrated LED is available in standard lengths of 4', 8’, and 12’, and can be joined together in seamless runs of any length.
FEATURES
Construction: Die-Formed 20 Gauge Cold-Rolled Steel
(Flat End Steel Plate Standard Die-Cast Aluminum Decorative End Cap Optional)
Continuous Row: Full Ability to Tandem Mount for Continuous Run Application, Equipped with Male & Female Quick Connect Harnesses
Light Distribution: 6% Down / 94% Up
Reflector: Die-Formed, High-Reflective
Mounting: 48" Adjustable Aircraft Cable
Lens: Semi-Specular Aluminum Louver
Electrical: Constant Current, Class 2
Voltage: 120-277V (347V and 480V Available for Canadian Projects, Consult Factory)
CRI: 80+ (90+ available, Consult Factory)
Power Factor: > .9
Life: 60,000 Hours L70
Operating Temperature: -22°F (-30°C) - 122°F (50°C)
Emergency Lumens: System Lumens x Emergency Wattage / System Wattage
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included), 10 Year Option Available
Listings: UL Listed for Dry & Damp Location
