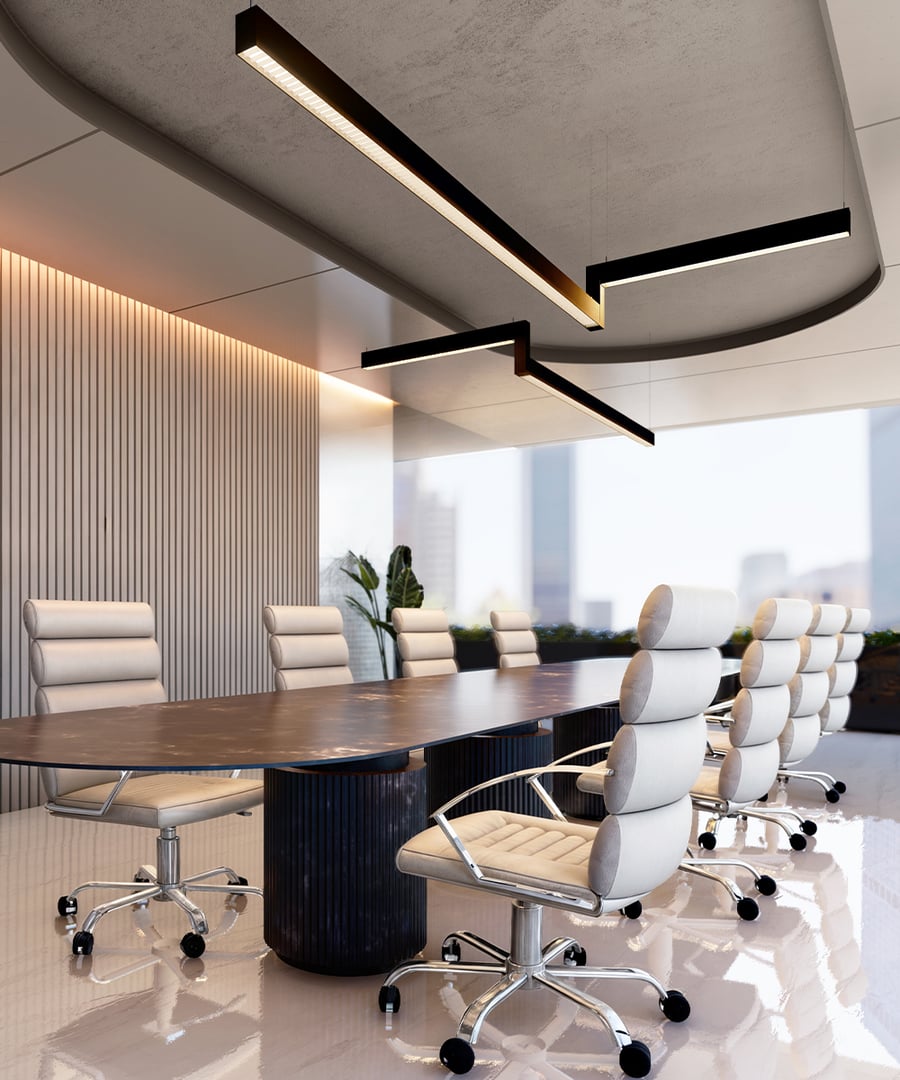

2-Inch Louver LED 3D Linear Lighting System
by Alcon Lighting
Model 12100-22-P-Z-L
$299.95
Built to order
Ships In: 3-7 Business Days
Loading...
Details
Description
Transform commercial or hospitality spaces with a cutting-edge linear lighting system that includes Z-shaped joiners, allowing you to design dynamic light patterns in three dimensions. The extruded aluminum housing is available in a range of finishes and holds a louver lens for glare control and focused illumination. The LED light offers 3-position wattage (5W/7.5W/10W) selection, color temperature control (30/35/40K), and a 7-position DIP switch to customize light direction with 0-10V dimming. This damp location-rated fixture provides optional emergency backup, ensuring consistent performance during power outages.
Manufacturer
Alcon Lighting
Model
12100-22-P-Z-L
Lead Time
Ships In: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, Damp Location, UL
Wattage
10 Watts, 5 Watts, 7.5 Watts
Voltage
120-277V
Finish
White, Black
Light Color
3000K, 3500K, 4000K
CRI
80+
Driver
0-10V
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Emergency Backup Battery, Occupancy Sensor
Mounting
Pendant
Light Direction
Direct/Indirect
Height
3"
Length
2 ft., 3 ft., 4 ft., 6 ft., 8 ft.
Lumens per foot
100 - 599 Lumens, 600 - 1199 Lumens
Beam Spread
110°
