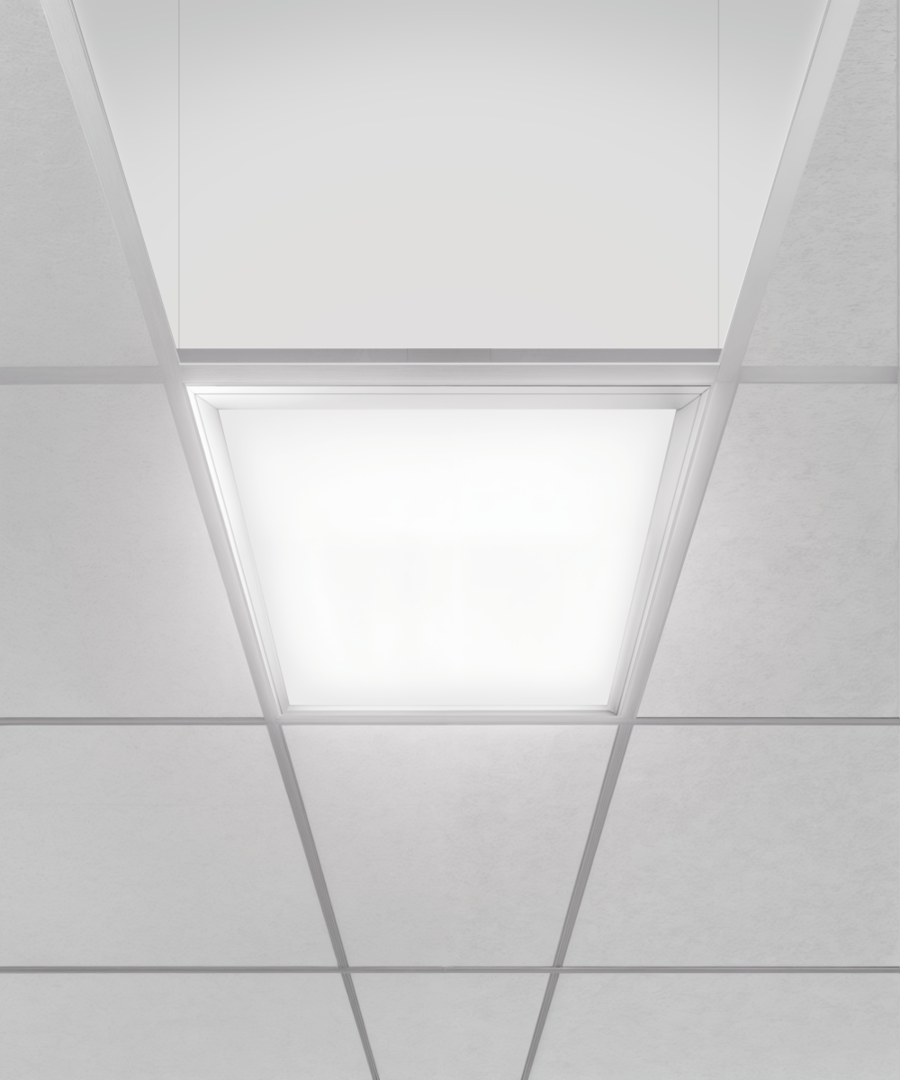

Architectural Edge-Lit LED Flat Panel Light
by Alcon Lighting
Model 14052-R
$149.95
Built to order
Details
Description
The edge-lit panel light features a white-framed edge, designed for T-bar drop ceilings and troffer replacement. The LED lens technology channels light emitted by the LEDs on the side of the fixture, directing it downward for uniform distribution without hot spots, flicker or glare. With a field-adjustable color temperature of 3500K, 4000K and 5000K, and 0-10V dimming (100-10% dimming), this light provides flexibility in lighting preferences. The streamlined design, combined with easy-to-install mounting brackets and safety earthquake clips, allows for simple installation in residential and commercial buildings.
Manufacturer
Alcon Lighting
Model
14052-R
Lumen output
2900 lm, 2925 lm, 2950 lm, 3390 lm, 3420 lm, 3450 lm, 3480 lm, 3510 lm, 3540 lm, 4400 lm, 4440 lm, 4480 lm, 4520 lm, 4560 lm, 4600 lm, 5500 lm, 5550 lm, 5600 lm
Lead Time
Ships in: 3-7 Business Days
Qualifications
Spec Grade, UL, DLC, Damp Location, Buy American Act (BAA), IC Rated
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Emergency Backup Battery
Dimming
0-10V
Wattage
25 to 49 Watts, 50 to 99 Watts
Voltage
120-277V
Finish
White
CCT
3000K, 3500K, 4000K, 5000K, 6500K
CRI
80+
Mounting
Pendant, Surface, Recessed Trim Flange, Recessed T-Bar
Light Direction
Direct Downlight
Size
1' x 4', 2' x 2', 2' x 4'
