3-Inch Color Temperature Switch Louver LED Linear Suspension Light

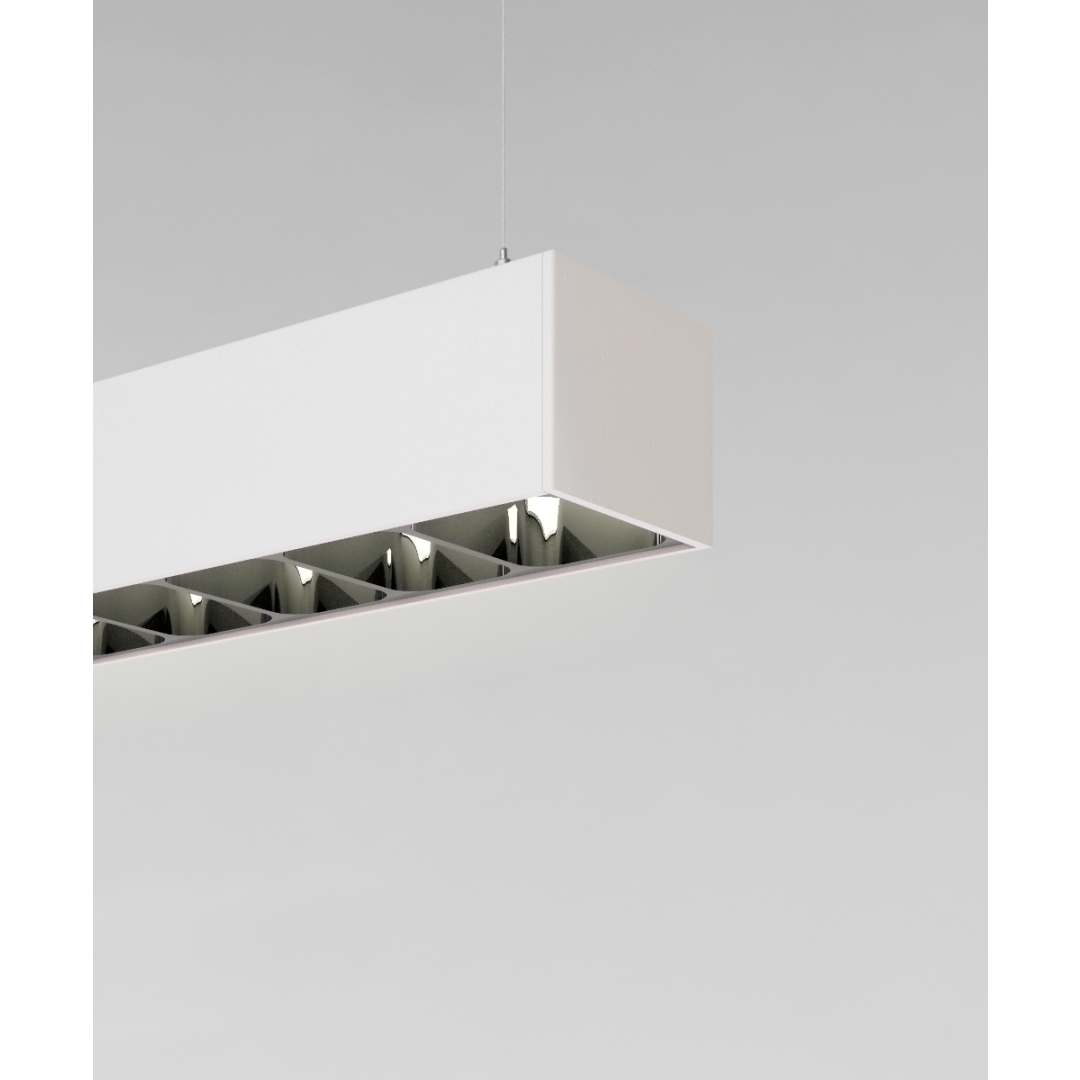

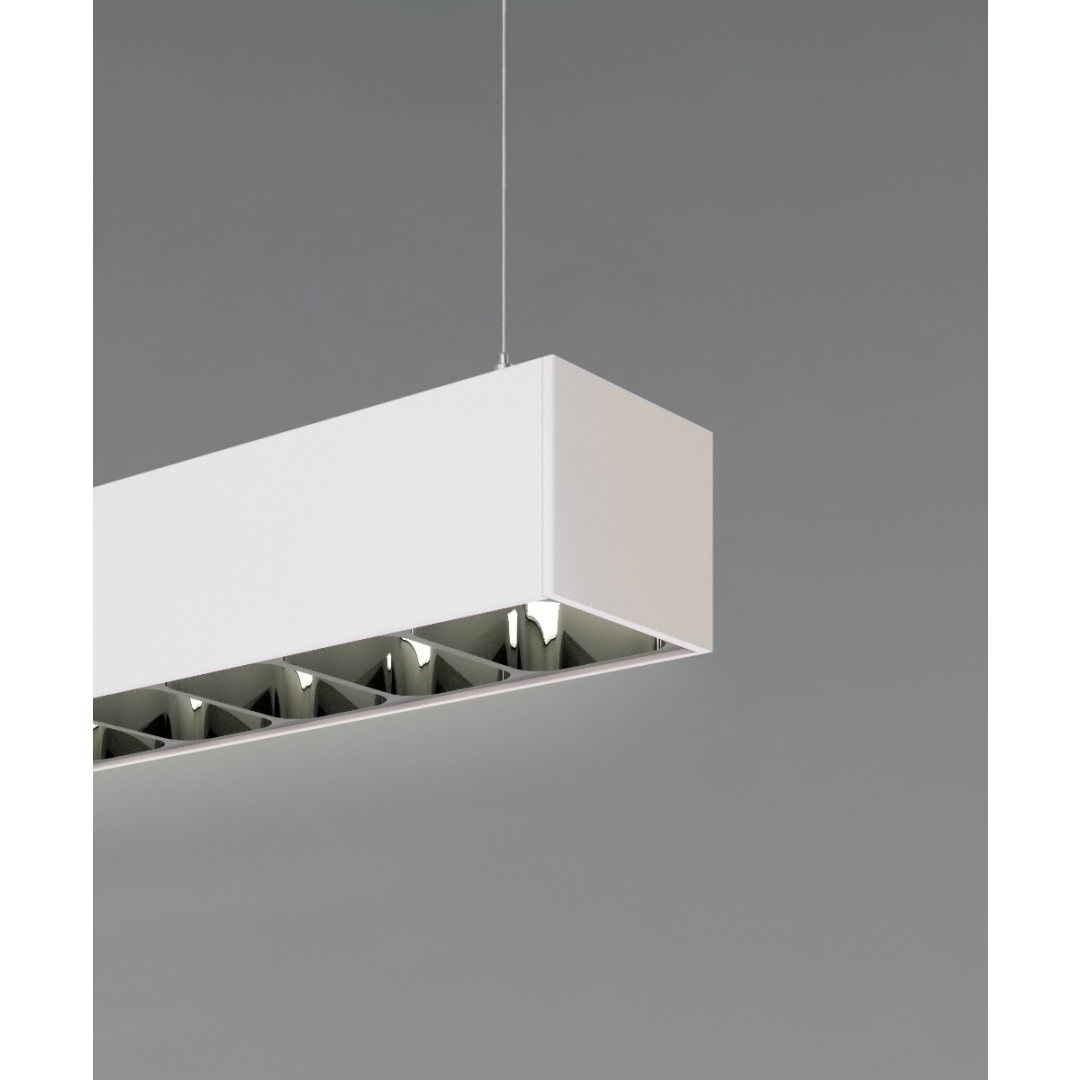

12100-23-P-LVR linear suspension light shown with metal louver, white finish and aircraft cable suspension

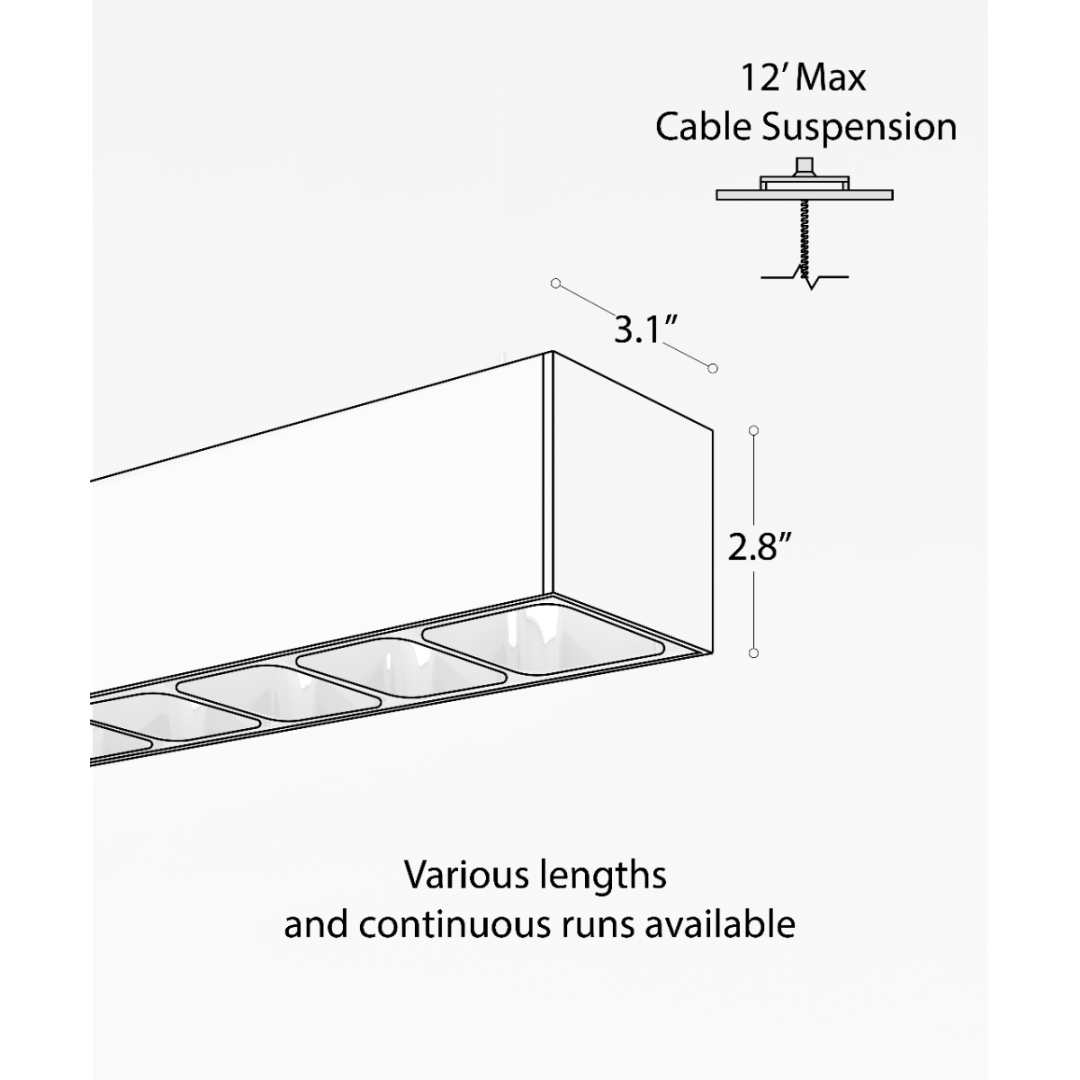

12100-23-LVR line drawing showing 3.1" x 2.8" housing and 12' max cable suspension; various lengths/continuous runs available

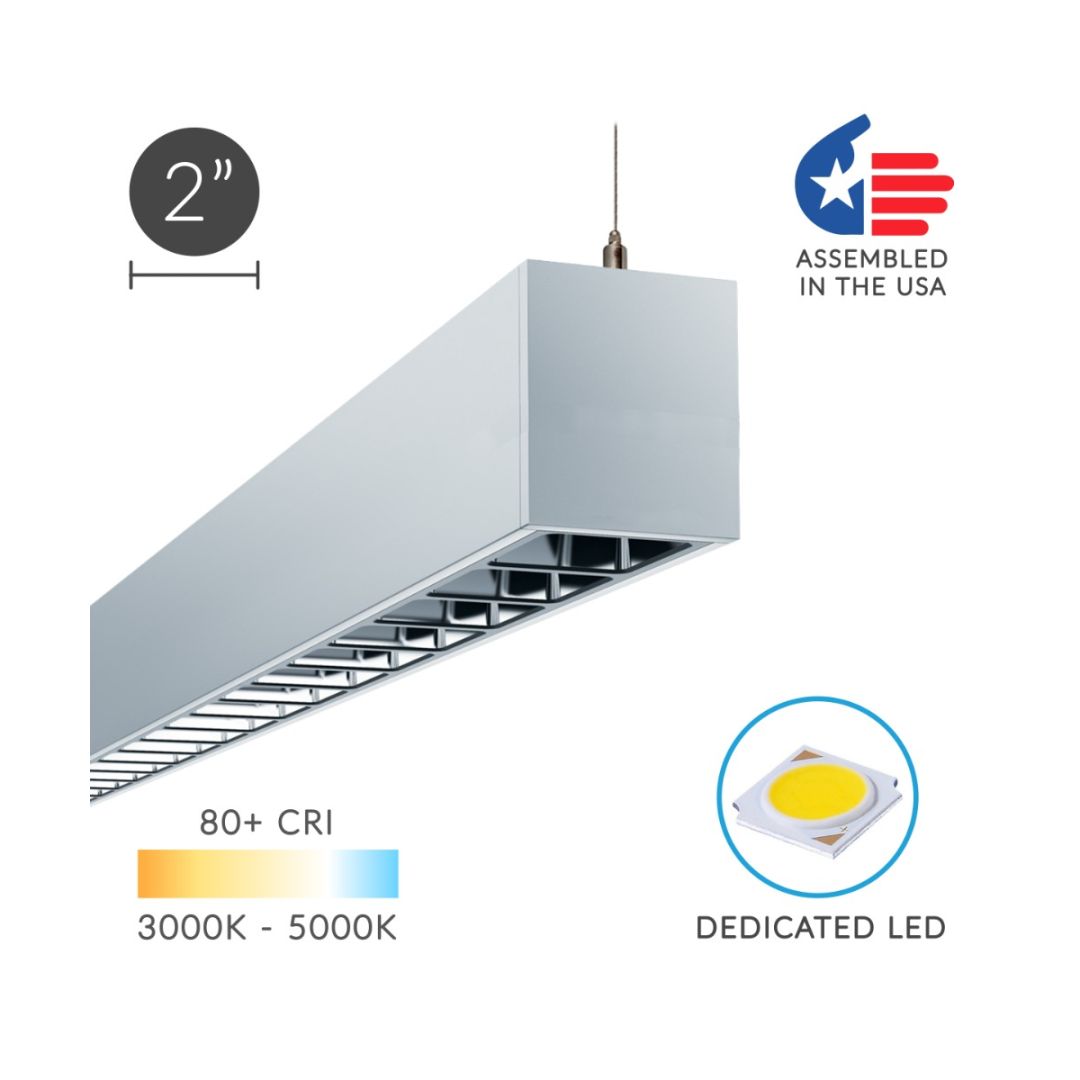

12100-23-P-LVR rendering with labels for 2" louver, assembled in USA, 80+ CRI, 30-50K and dedicated LED

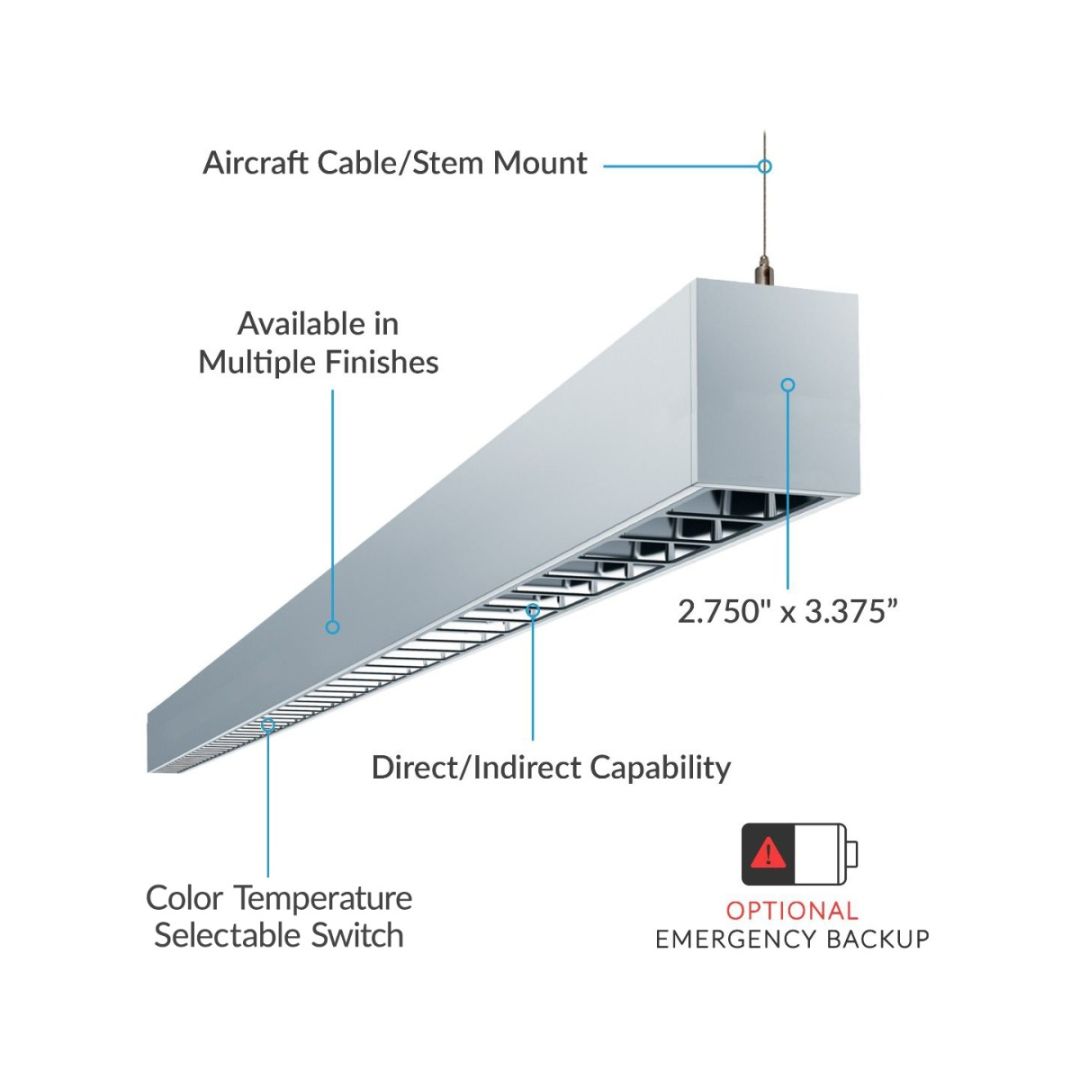

12100-23-P-LVR with aircraft cable/stem mount, direct/indirect, multiple finishes, CCT selection, optional emergency backup

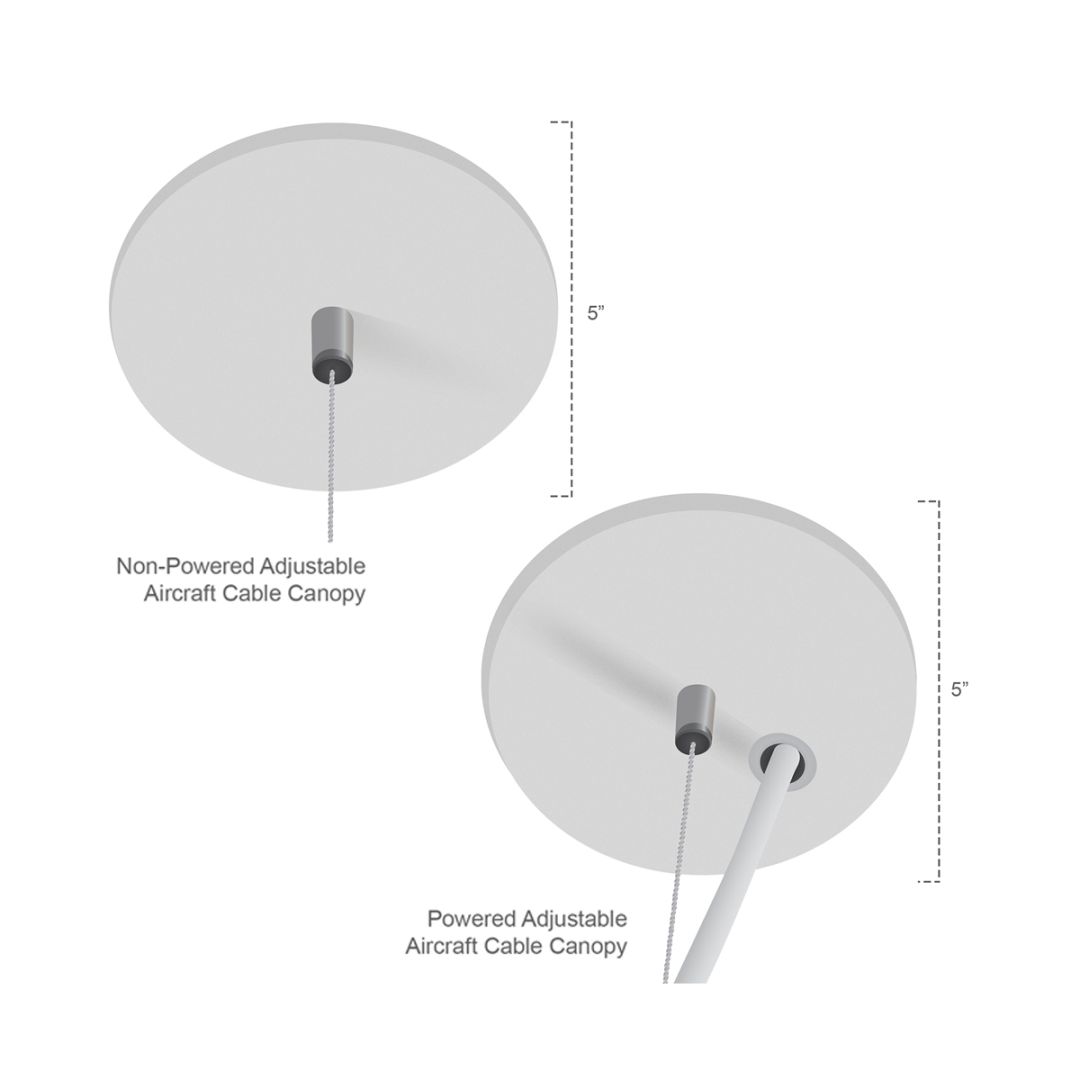

Aircraft cable canopy rendering showing 5-inch round powered and non-powered canopy

See 2 more

Model 12100-23-P-LVR

3-Inch Color Temperature Switch Louver LED Linear Suspension Light

Name: 3-Inch Color Temperature Switch Louver LED Linear Suspension Light
Brand: Alcon Lighting
SKU: 12100-23-P-LVR
Price: 505.95 USD
Availability: InStock

By Alcon Lighting

$505.95

Built to order

, ships-in: 2-3 weeks

Customize

Emergency Backup Battery (700lm) + $250.00

Select All

0 Selected

Spec Sheet

This LED linear pendant light yields versatile uplighting and downlighting with a color temperature switch that allows color temperature to be field-adjusted between 3000K, 3500K and 4000K. The aluminum, louvered suspension light is available in various lengths and provides modern, elegant lighting in museum, educational, retail, dining and hospitality interiors.

Manufacturer

Alcon Lighting
Model

12100-23-P-LVR
Lead Time

Ships-in: 2-3 Weeks
Return Policy

Built to order. Restocking fees apply.
Qualifications

ETL, DLC, Damp Location
Dimming

0-10V
Voltage

120-277V
Finish

White, Black
CCT

3000K, 3500K, 4000K
CRI

80+
Mounting

Pendant, Pendant Aircraft Cable
Light Direction

Direct/Indirect
Shape

Linear
Beam Spread

120°
Lumens per ft

1463 lm/ft, 1544 lm/ft, 1560 lm/ft, 1625 lm/ft, 1647 lm/ft, 1733 lm/ft, 1755 lm/ft, 1853 lm/ft, 2217 lm/ft
Length

2 ft., 4 ft., 6 ft., 8 ft.
