Alcon Lighting 9012 Modena Architectural Landscape LED Low Voltage Directional Uplight Fixture
by Alcon Lighting
Model 9012
$179.95
Built to order
Ships in: 1-2 weeks
Loading...
Details
Description

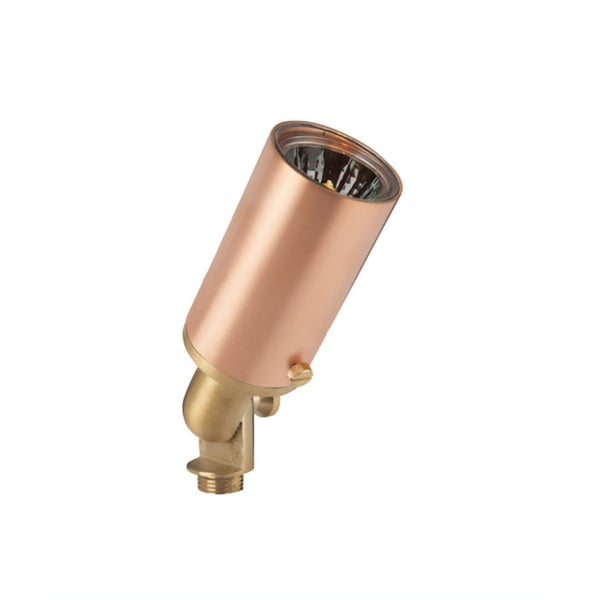

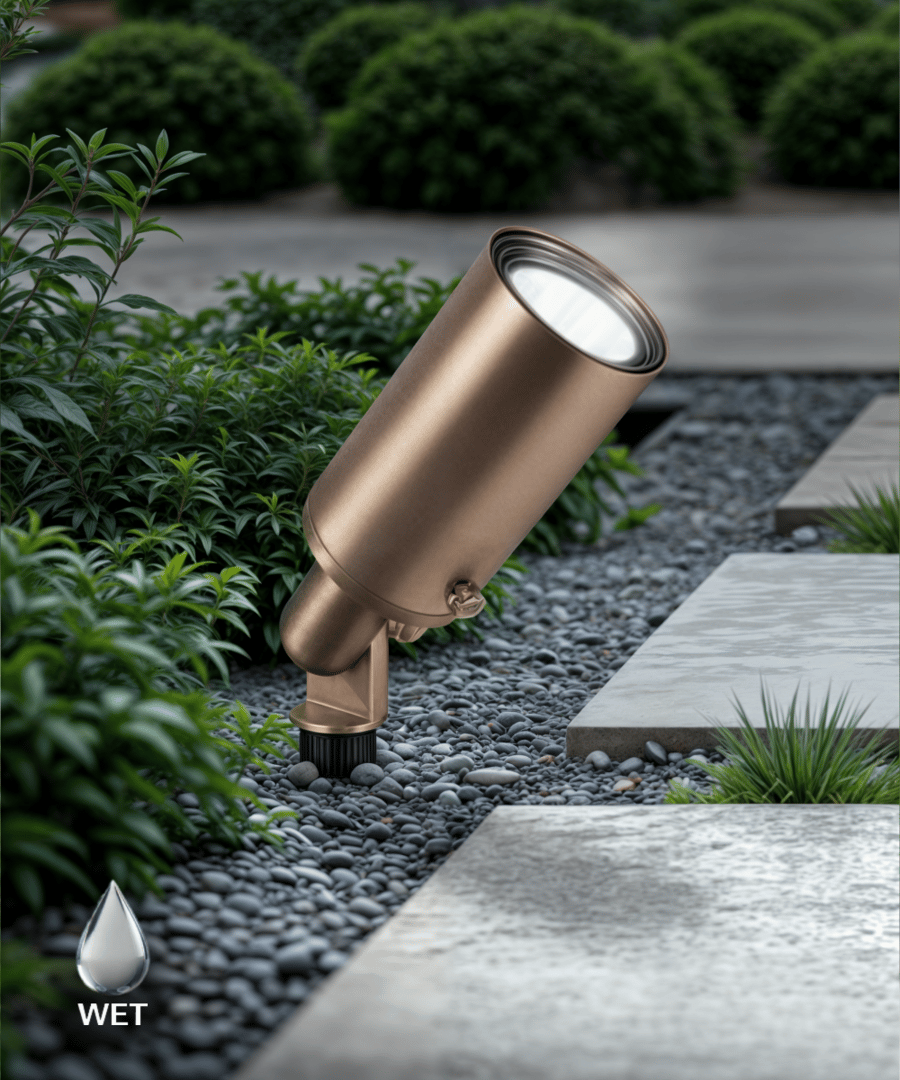

The Alcon Lighting Modena Architectural LED Directional Up Light Fixtures features naturally etched finishes capable of withstanding the test of time. The Modena Directional Uplights are ideal for architectural landscape lighting applications.
L 6.25" x Dia 2.25"
Construction: Corrosion Resistant Solid Copper
Finish: Raw Copper
Lens: Clear and heat resistant tempered flat glass
Wiring: Prewired with a 3' 18-2 SPT2-W direct burial cord
Socket: Spring loaded top grade adjustable ceramic bi-pin
Gasket: Silicone double gasket for water tight seal
Knuckle: Adjustable cast brass with thumb screw and 1/2" NPT threaded male hub
Mounting: 1/2" NPT threaded female hub (1/2" NPT Spike included)
Electrical: Remote 12V transformer required (Not included)
Halogen Equivalent: MR16, 25W or 50W
L 6.25" x Dia 2.25"
Construction: Corrosion Resistant Solid Copper
Finish: Raw Copper
Lens: Clear and heat resistant tempered flat glass
Wiring: Prewired with a 3' 18-2 SPT2-W direct burial cord
Socket: Spring loaded top grade adjustable ceramic bi-pin
Gasket: Silicone double gasket for water tight seal
Knuckle: Adjustable cast brass with thumb screw and 1/2" NPT threaded male hub
Mounting: 1/2" NPT threaded female hub (1/2" NPT Spike included)
Electrical: Remote 12V transformer required (Not included)
Halogen Equivalent: MR16, 25W or 50W
Manufacturer
Alcon Lighting
Model
9012
Lead Time
Ships in: 1-2 weeks
Return Policy
Assembled to Order. A 30% Restocking Fee May Apply.
Qualifications
Assembled in USA ARRA, ETL
Wattage
3.5 Watts, 5 Watts
Voltage
12V
Finish
Copper
Light Color
2700K
Length
6.25"
Diameter
2.25"
Lumens per foot
100 - 599 Lumens
Beam Spread
15° Spot, 45° Flood, 60° Wide Flood
