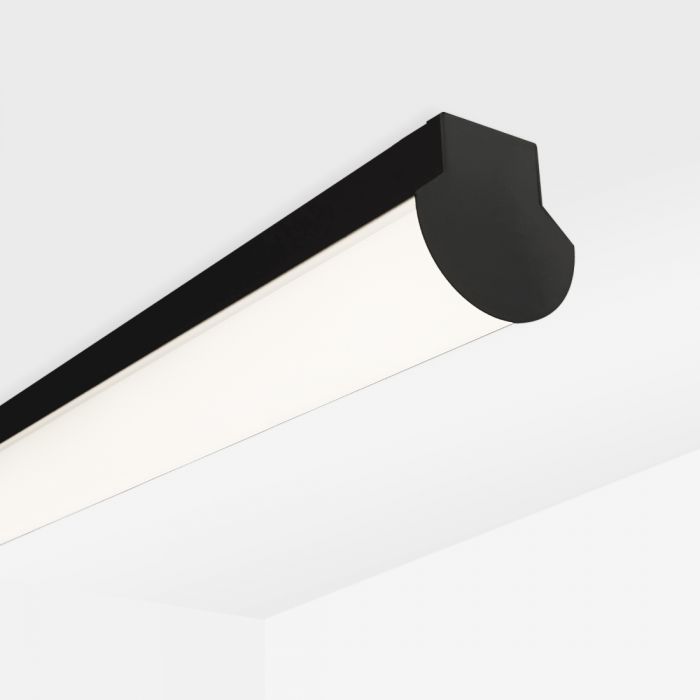

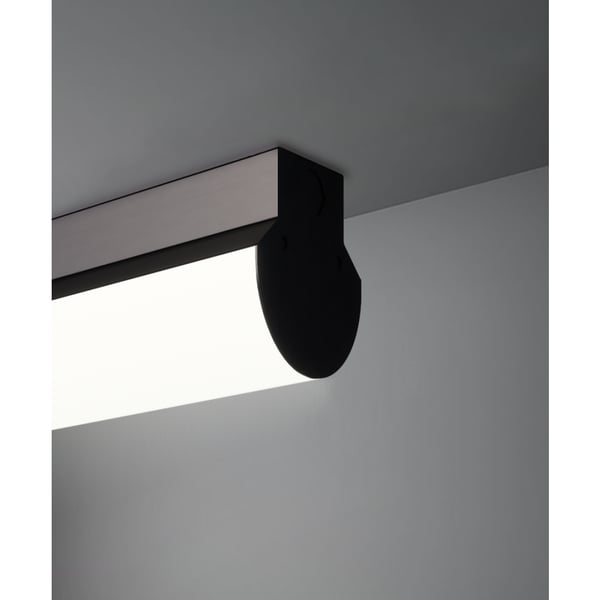

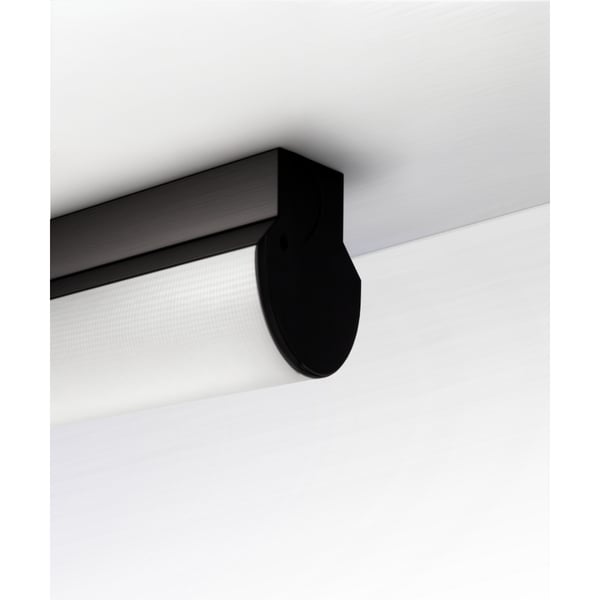

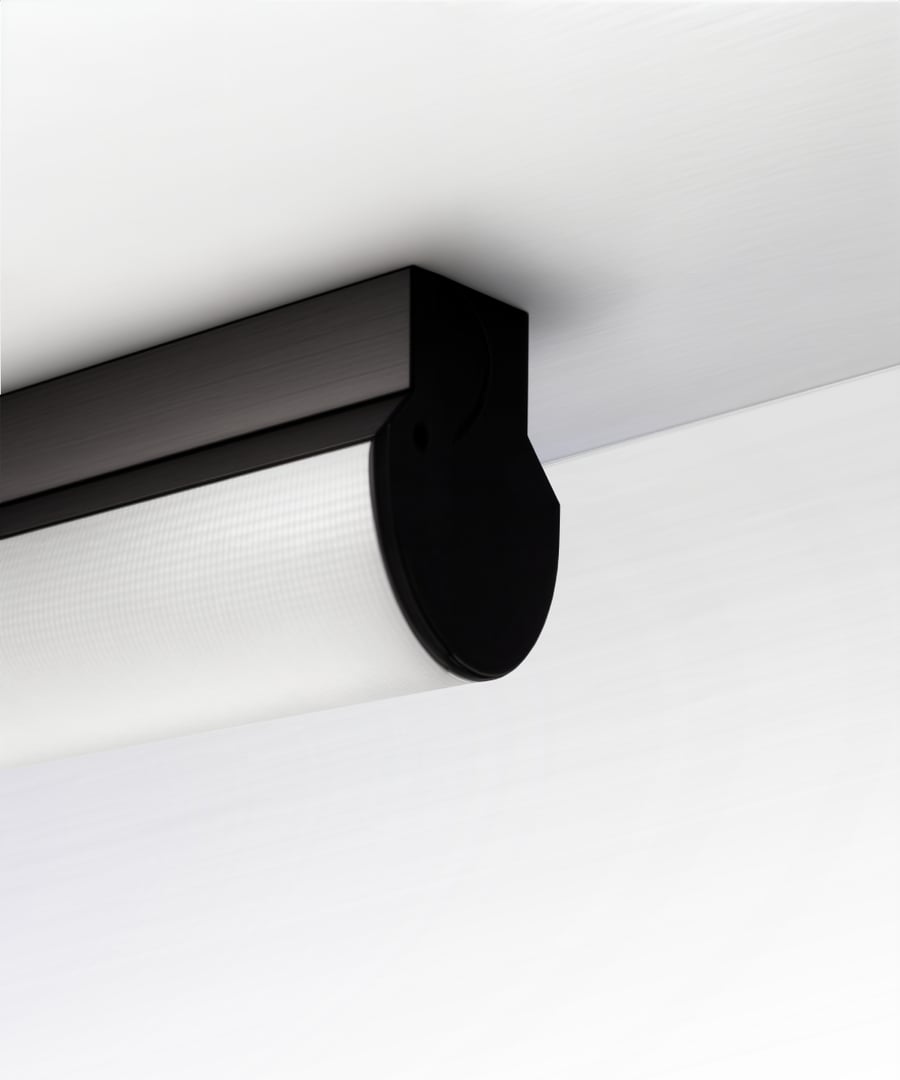

Rounded Block LED Linear Surface-Mount Ceiling Light
by Alcon Lighting
Model 12122-S
$279.95
Built to order
Downloads
- Specification Sheet (Gen 2 — New)
- Specification Sheet (Gen 1 — Discontinued)
- Installation Instructions (Gen 1 — Discontinued)
- Continuous Row Instructions (Gen 1 — Discontinued)
- LED Board Replacement Instructions (Gen 1 — Discontinued)
- Engineer Specifications and Dimensions (Gen 1 — Discontinued)
- IES Files (Gen 1 — Discontinued)
Loading...
Details
Description
The Alcon Lighting rounded block linear light is a commercial-grade LED surface mount fixture available in 4-foot and 8-foot lengths. Constructed from die-formed and welded 22-gauge steel, this corrosion-resistant luminaire ensures durability and long-lasting performance. A snap-in, glare-free lens delivers uniform, high-efficacy illumination with lumen packages from 4,650 to 25,000 lumens and color temperatures of 3000K, 3500K, 4000K, or 5000K. Designed for surface mounting, the LED ceiling light includes optional emergency battery backup and an occupancy sensor, making it a versatile solution for schools, offices, hospitals, commercial spaces and retail environments.
Manufacturer
Alcon Lighting
Model
12122-S
Lumen output
4650 lm, 7974 lm, 11150 lm, 12040 lm, 13016 lm, 15728 lm, 16500 lm, 20000 lm, 25000 lm
Lead Time
Ships-in: 2-4 Weeks
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, ETL, cETLus, Damp Location, Made in USA
Features
Occupancy Sensor, Emergency Backup Battery
Dimming
0-10V, TRIAC
Wattage
25 to 49 Watts, 50 to 99 Watts, 100 to 149 Watts, 150 Watts & Above
Wattage
33W, 57W, 80W, 86W, 93W, 112W, 118W, 143W, 179W
Voltage
120-277V
Finish
White, Custom RAL (Extended Lead Time May Apply)
CCT
3000K, 3500K, 4000K, 5000K
CRI
82+
CRI
80+
Mounting
Surface
Light Direction
Direct Downlight
