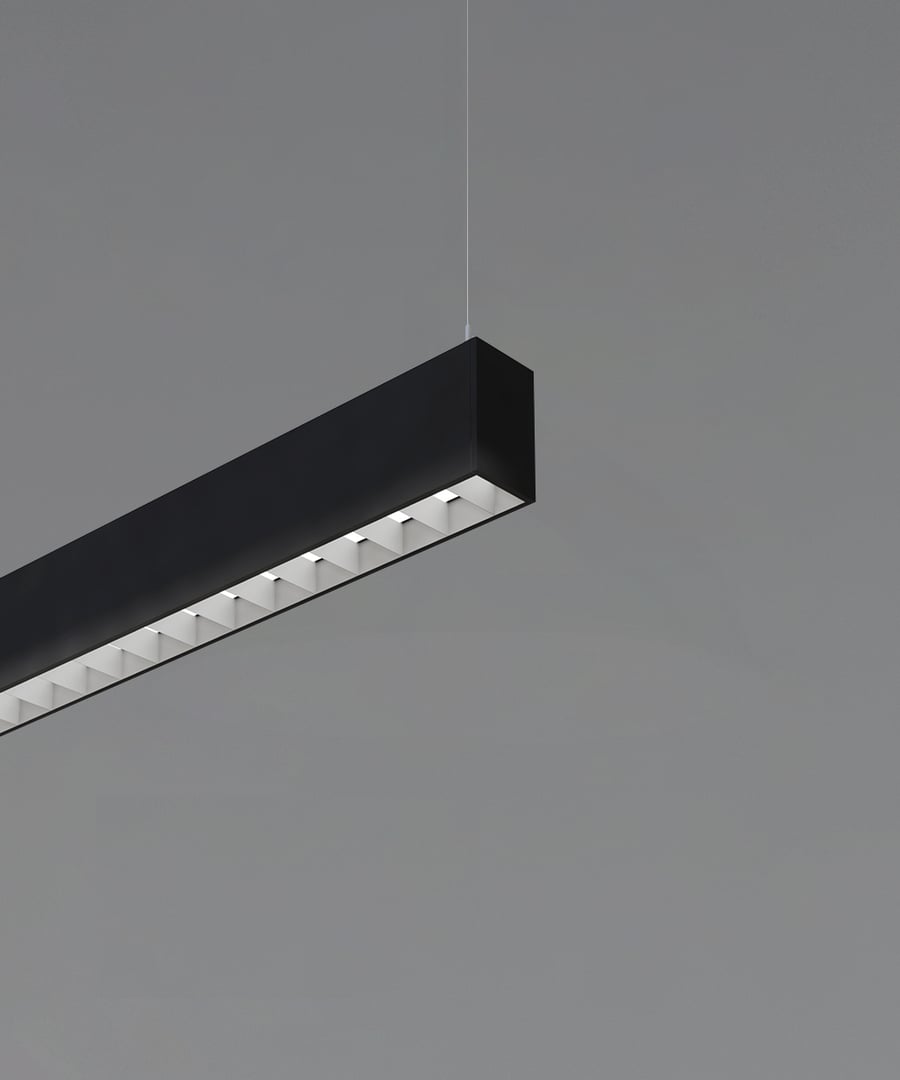

1-Inch Louver Linear LED Pendant Light
by Alcon Lighting
Model 12100-12-P-L
$199.95
Built to order
Ships In: 3-7 Business Days
Downloads
Loading...
Details
Description
This 1-inch louvered linear LED pendant offers efficient, glare-reducing lighting for offices, museums and retail spaces. Available in lengths from 2 to 8 feet with continuous run and geometric design options, this fixture features a selectable wattage (50%, 75% or 100%) and 0-10V dimming. The color temperature is field-selectable (3000K, 3500K, or 4000K), while a 2-position DIP switch adjusts distribution from 100% downlight, delivering 700 lumens per foot, to 25% up and 75% down, delivering 750 lumens per foot. The aluminum housing and louvered design ensure durability and minimal glare for commercial, corporate and hospitality settings.
Manufacturer
Alcon Lighting
Model
12100-12-P-L
Lead Time
Ships In: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Spec Grade, Damp Location, UL
Wattage
10 Watts, 5 Watts, 7.5 Watts
Voltage
120-277V
Finish
White, Black
Light Color
3000K, 3500K, 4000K
CRI
90+
Driver
0-10V
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Emergency Backup Battery, Light Direction, Occupancy Sensor
Mounting
Pendant
Light Direction
Direct/Indirect
Height
2"
Length
2 ft., 4 ft., 8 ft.
Lumens per foot
600 - 1199 Lumens
Beam Spread
110°
