Rounded Block LED Linear Suspension Light
by Alcon Lighting
Model 12122-P
$299.95
Built to order
Downloads
- Specification Sheet (Gen 2 — New)
- Specification Sheet (Gen 1 — Discontinued)
- Continuous Row Instructions (Gen 1 — Discontinued)
- Wiring Instructions (Gen 1 — Discontinued)
- Engineer Specifications and Dimensions (Gen 1 — Discontinued)
- Suspension Kit Installation Instructions (Gen 1 — Discontinued)
- Pendant Installation Instructions (Gen 1 — Discontinued)
- IES Files (Gen 1 — Discontinued)
Loading...
Details
Description

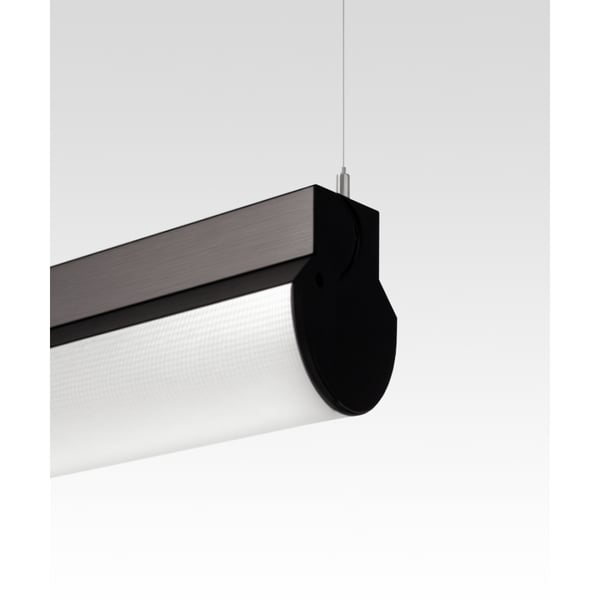

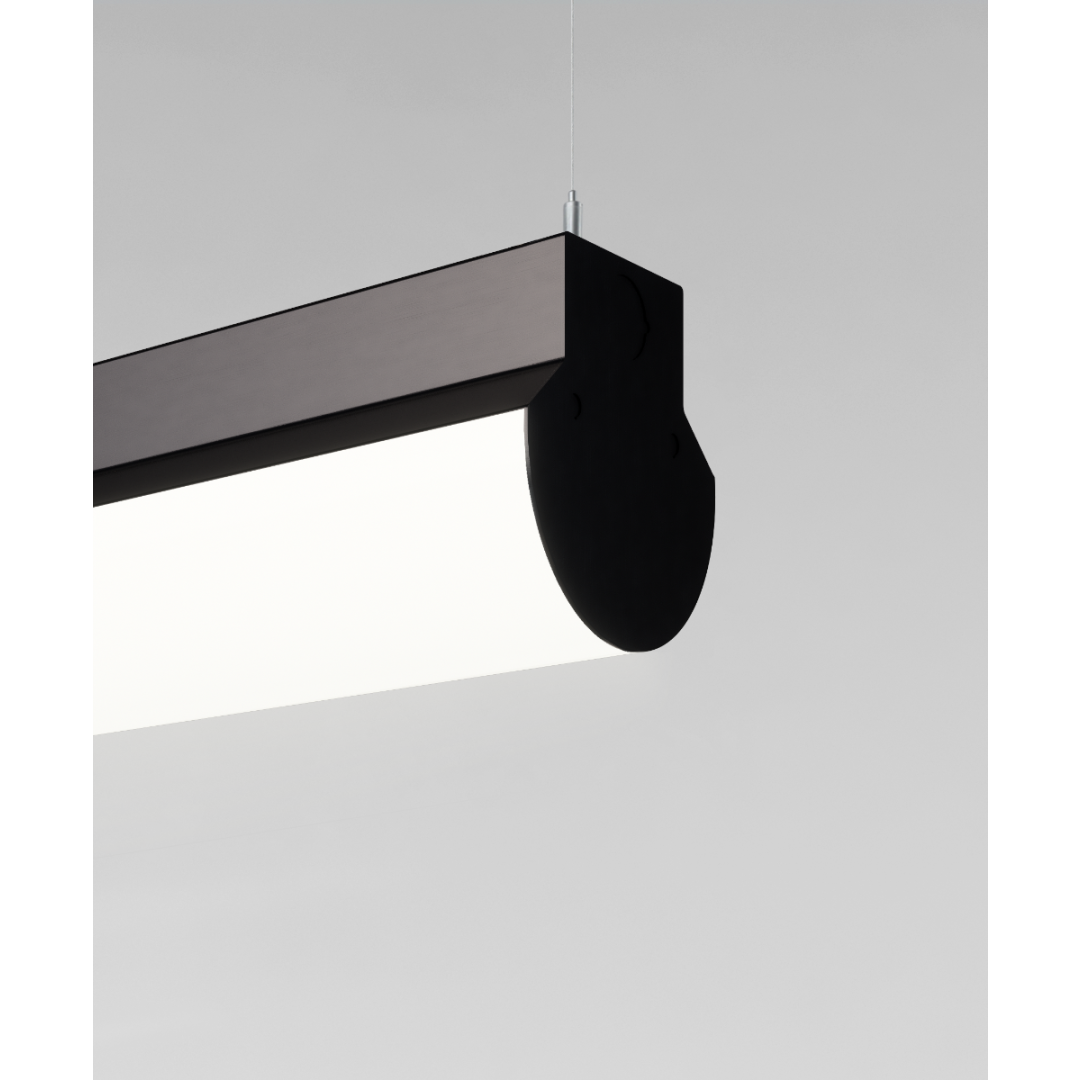

The Alcon Lighting rounded block linear light is a high-performance, commercial-grade LED pendant available in 4-foot and 8-foot lengths. Made from die-formed and welded 22-gauge steel, this corrosion-resistant fixture ensures durability and longevity. The snap-in, glare-free lens provides uniform, high-efficacy illumination with lumen packages from 4,650 to 25,000 lumens and color temperatures of 3000K, 3500K, 4000K or 5000K. Designed for suspended mounting, this LED pendant offers optional emergency battery backup and an occupancy sensor, perfect for schools, offices, hospitals, commercial spaces and retail environments.
Manufacturer
Alcon Lighting
Model
12122-P
Lumen output
4650 lm, 7974 lm, 11150 lm, 12040 lm, 13016 lm, 15728 lm, 16500 lm, 20000 lm, 25000 lm
Lead Time
Ships-in: 2-4 Weeks
Return Policy
Built to order. Restocking fees apply.
Qualifications
Spec Grade, ETL, cETLus, Damp Location, Made in USA
Features
Occupancy Sensor, Emergency Backup Battery
Dimming
0-10V, TRIAC
Wattage
25 to 49 Watts, 50 to 99 Watts, 100 to 149 Watts, 150 Watts & Above
Wattage
33W, 57W, 80W, 86W, 93W, 112W, 118W, 143W, 179W
Voltage
120-277V
Finish
White, Black, Red, Orange
CCT
3000K, 3500K, 4000K, 5000K
CRI
82+
CRI
80+
Mounting
Pendant, Pendant Aircraft Cable , Pendant Stem
Light Direction
Direct Downlight
